Chemical/Physical Nature

ZC-698WD resin is an unsaturated polyester resin with phthalic anhydride, maleic anhydride, and standard diols as the main raw materials. It has been dissolved in styrene crosslinking monomers and has moderate viscosity and reactivity.

Benefits and Application

“Hygienic Standard for Unsaturated Polyester Resin and Fiberglass Products for Food Containers and Packaging Materials”. Has high mechanical strength, high heat resistance, and excellent water resistance. Suitable for inner lining layers of fiberglass pipes, storage tanks, etc. with food grade requirements. Compliant with the JC/T1092-2008 standard for mechanical forming winding resin, it can be used for continuous winding processes.

Liquid Resin Typical Properties

Unfilled Castings Typical Properties

Application Guidelines

1. ZC-698WD resin does not contain wax, accelerators, or thixotropes.
2. In order to ensure compliance with the requirements of GB13115-1991 standard, the dosage of accelerators and curing agents used in the production of food grade fiberglass products should meet the following requirements: tertiary amine: ≤ 0.1% cobalt octanoate or cobalt cyclohexane: ≤ 0.03% peroxide: ≤ 3.0%
3. In order to ensure compliance with the requirements of GB13115-1991 standard, the post curing treatment of food grade fiberglass products is as follows: curing at 80 ° C for 3-4 hours, and cleaning with hot water at 80 ° C for 1-2 hours.
4. It is recommended to choose NEWSOLAR9365 resin for the structural layer of wrapped pipelines and storage tanks.

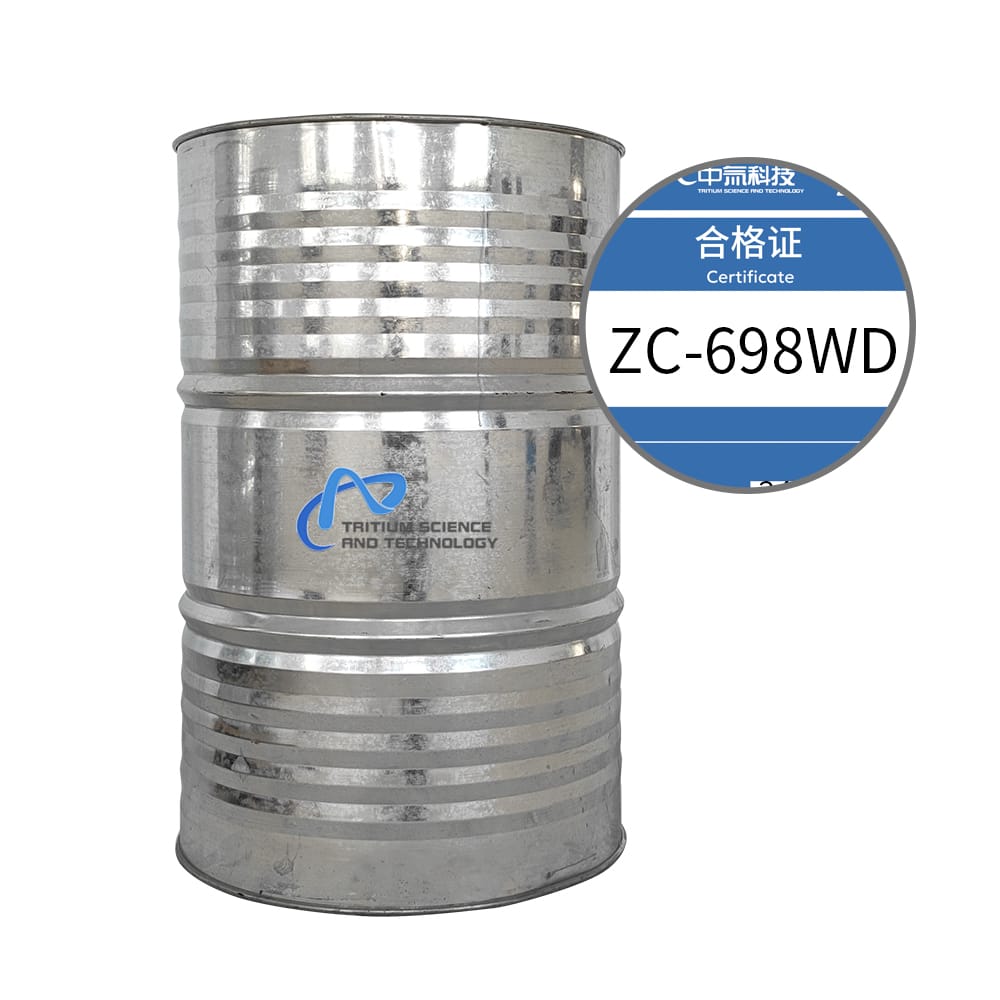

Package

Net weight 220 kilograms, metal drum.Please contact us.
