Structures:Orthophthalic
Processes:BMC Molding Resin, SMC Molding Resin
Application:It is widely used in various FRP products with flame retardant performance requirements.
ZC-5694AT resin is an additive flame retardant unsaturated polyester resin with a high-efficiency composite flame retardant. It is halogen-free, dissolved in styrene cross-linking monomer, and has medium viscosity and medium reactivity.
ZC-5694AT resin has low smoke, low toxicity, high flame retardancy, and strong self-extinguishing property, which meets the requirements of railway industry standard TB/T3138-2006 and German standard DIN5510-2. At the same time, it has good operating performance and mechanical properties. It is widely used in various FRP products with flame retardant performance requirements, and is especially recommended for high flame retardant, low smoke and low toxicity parts, such as interior parts of passenger cars, trains, subways, light rail trains and other transportation vehicles, as well as in the construction field.
| Property | Value | Unit | TM |
| Appearance | – | – | – |
| Acid Value | 6.0-12 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.55-0.9 | Pa.s | GB/T 7193-2008 |
| Solid Content | 75-85 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 10-30 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body has no defects | – | – |
| Barcol hardness | 56 | – | GB/T 3854-2005 |
| HDT | 70 | ℃ | GB/T 1634-2004 |
| Break Elongation | 0.85 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol hardness | 68 | – | GB/T 3854-2005 |
| Flexural Strength | 280 | Mpa | GB/T 1449-2005 |
| Tensile Strength | 300 | Mpa | GB/T 1449-2005 |
1. ZC-5694AT resin contains wax but no accelerator.
2. Recommended curing system: pure cobalt accelerator 0.4-2.0%; MEKP curing agent 1.0-2.5%.
3. During the storage of added flame retardant resin, filler sedimentation will occur, which is a normal phenomenon. It should be fully stirred before use.
Net weight 220 kilograms, metal drum.Please contact us.
Structures:Orthophthalic
Processes:Spraying-up Resin
Application:It is suitable for spraying to make surface decorative layers and protective layers of various ordinary fiberglass products.
Structures:Orthophthalic
Processes:Hand lay-up Resin
Application:It is suitable for making surface decorative layers and protective layers of various ordinary.
Structures:Isophthalic
Processes:Hand lay-up Resin
Application:It is suitable for making surface decorative layers and protective layers of various ordinary fiberglass products by brushing process.
Structures:Orthophthalic
Processes:BMC Molding Resin, SMC Molding Resin
Application:It is widely used in various glass fiber reinforced plastic products with flame retardant performance requirements.
Structures:Orthophthalic
Processes: Continuous Lamination Resin

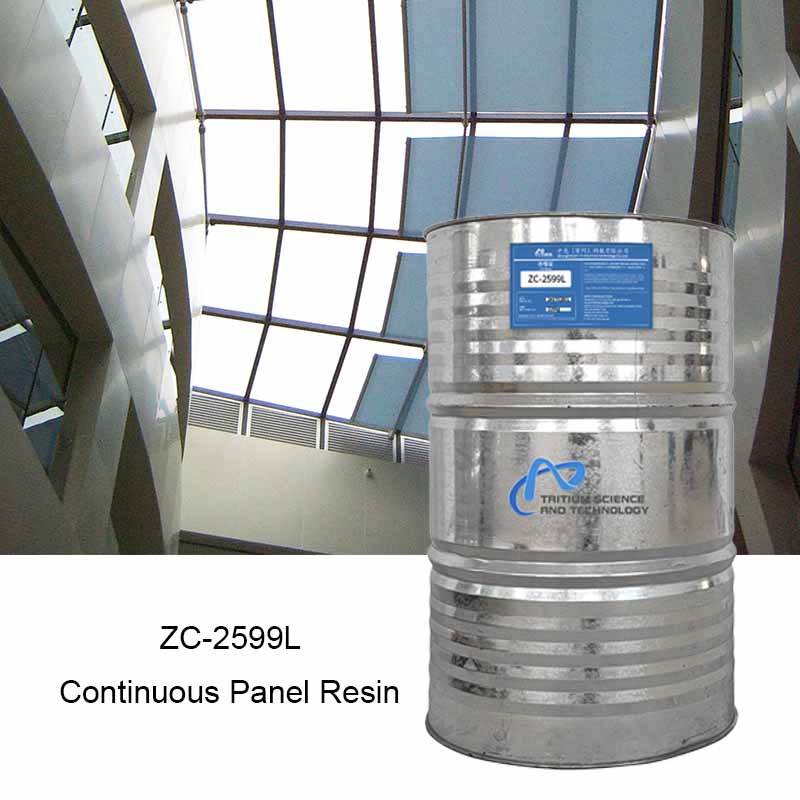

Application:It is suitable for continuous molding process to produce high-performance light-transmitting machine-made panels.
Structures:Orthophthalic
Processes:Casting Resin
Application:It is suitable for glass fiber reinforced plastics, anti-corrosion floors and coatings with high corrosion resistance requirements.
