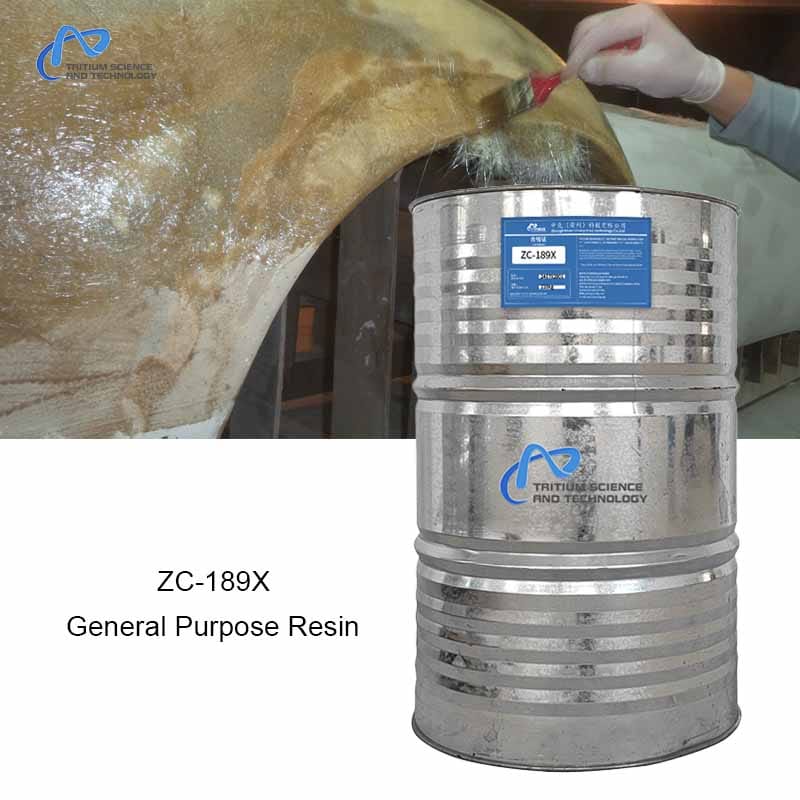

Polylite™ Unsaturated Polyester Resin ZC-189X

Structures:Orthophthalic
Processes:Hand lay-up
Application:It is suitable for hand lay-up process to produce various common water proof products such as inland river FRP ships, automobile parts, cooling towers, water tanks, etc.

+86 18136701732
Info@tritiumupr.com

Product Details

Chemical/Physical Nature

ZC-189X resin is an unsaturated polymer with phthalic anhydride, maleic anhydride and standard diols as the main raw materials Ester resin, soluble in crosslinked monomers such as styrene, with moderate viscosity and moderate reaction Activity.

Benefits and Application

ZC-189X resin strength and rigidity is good, after curing fast, with excellent mechanical properties, application Wide range, suitable for ordinary FRP products.

Liquid Resin Typical Properties

Property Value Unit TM
Appearance Light yellow transparent viscous liquid
Acid Value 19-25 mgKOH/g GB/T 2895-2008
Viscosity,25℃ 0.30-0.60 Pa.s GB/T 7193-2008
Solid Content 59-65 % GB/T 7193-2008
Thermal Stability,80℃ ≥24 h GB/T 7193-2008
Gelation time 25℃ 6-18 min GB/T 7193-2008

Unfilled Castings Typical Properties

Property Value Unit TM
Appearance Qualified
Barcol hardness 42 GB/T 3854-2005
HDT 60 GB/T 1634-2004
Break Elongation 2.2 Mpa GB/T 2567-2008
Tensile Strength 60 Mpa GB/T 2567-2008
Tensile Modulus 3800 Mpa GB/T 2567-2008
Flexural Strength 110 Mpa GB/T 2567-2008
Flexural Modulus 3800 Mpa GB/T 2567-2008

FRP Typical Properties

Property Value Unit TM
Barcol Hardness 64 GB/T 3584-2005
Flexural Strength 300 Mpa GB/T 1449-2005
Flexural Modulus 17000 Mpa GB/T 1449-2005
Tensile Strength 320 Mpa GB/T 1447-2005
Tensile Modulus 16000 Mpa GB/T 1447-2005

Application Guidelines

ZC-189X resin contains wax and does not contain accelerators and thixotropic auxiliaries.

Package

Net weight is 220 kg, metal barrel.Please contact us.
