Structures:Orthophthalic
Processes:Casting Resin

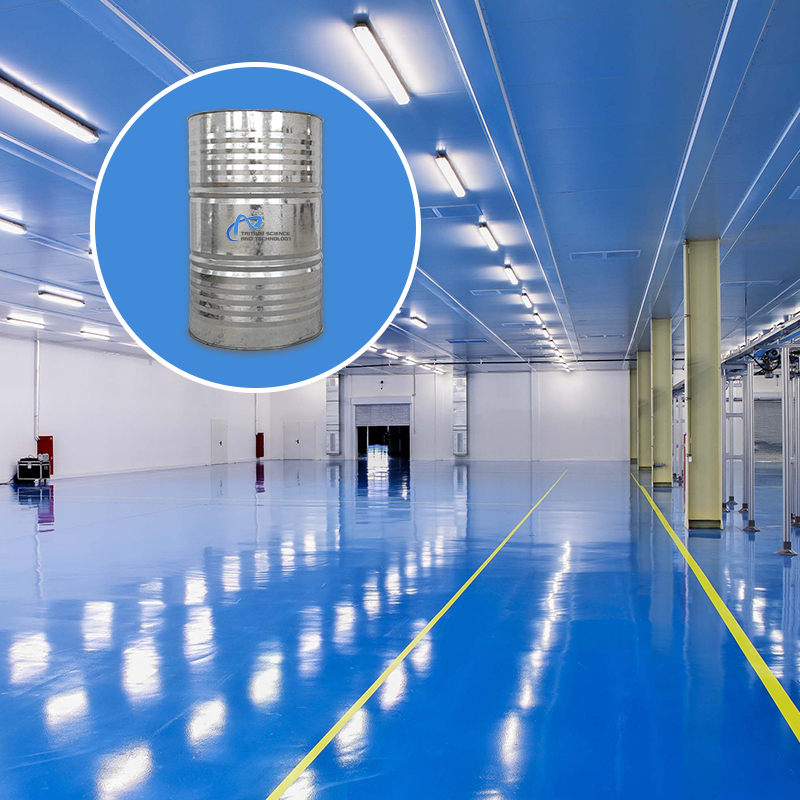

Application:It is suitable for glass fiber reinforced plastics, anti-corrosion floors and coatings with high corrosion resistance requirements.
ZC-1409B resin is a xylene-based corrosion-resistant unsaturated polyester resin dissolved in styrene cross-linking monomer with medium viscosity and medium reactivity.
ZC-1409Bresin is a chemical-resistant CM type with good chemical and corrosion resistance. It is suitable for glass fiber reinforced plastics, anti-corrosion floors and coatings with high corrosion resistance requirements.
| Property | Value | Unit | TM |

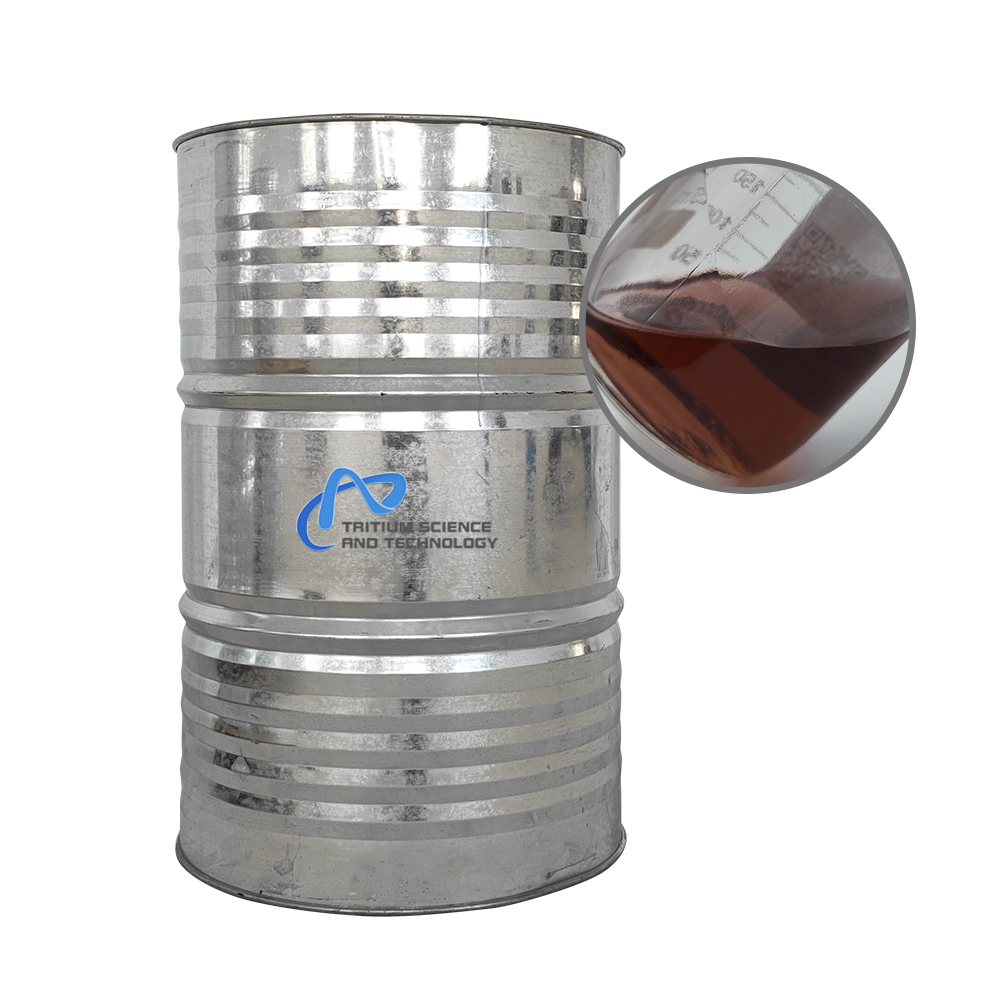

| Appearance | Light yellow transparent viscous liquid | – | – |
| Acid Value | 14-22 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.4-0.5 | Pa.s | GB/T 7193-2008 |
| Solid Content | 56-64 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 10-25 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body has no defects | – | – |
| Barcol hardness | 45 | – | GB/T 3854-2005 |
| HDT | 90 | ℃ | GB/T 1634-2004 |
| Break Elongation | 1.6 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 50 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3800 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol hardness | 65 | – | GB/T 3854-2005 |
| Flexural Strength | 320 | Mpa | GB/T 1449-2005 |
| Flexural Modulus | 15500 | Mpa | GB/T 1449-2005 |
| Tensile Strength | 300 | Mpa | GB/T 1449-2005 |
| Tensile Modulus | 15000 | Mpa | GB/T 1449-2005 |
1. ZC-1409B resin contains wax, but does not contain accelerators and thixotropic agents.
2. When selecting heat-resistant and chemical-resistant anticorrosive resins, the actual medium and temperature of the product should be used, and the appropriate resin should be selected according to the company’s “Heat-resistant and Chemical-resistant Medium Use Inquiry Table” and confirmed through tests.
3. Post-curing of corrosion-resistant FRP products is particularly important, and the products should be used after they are fully cured.

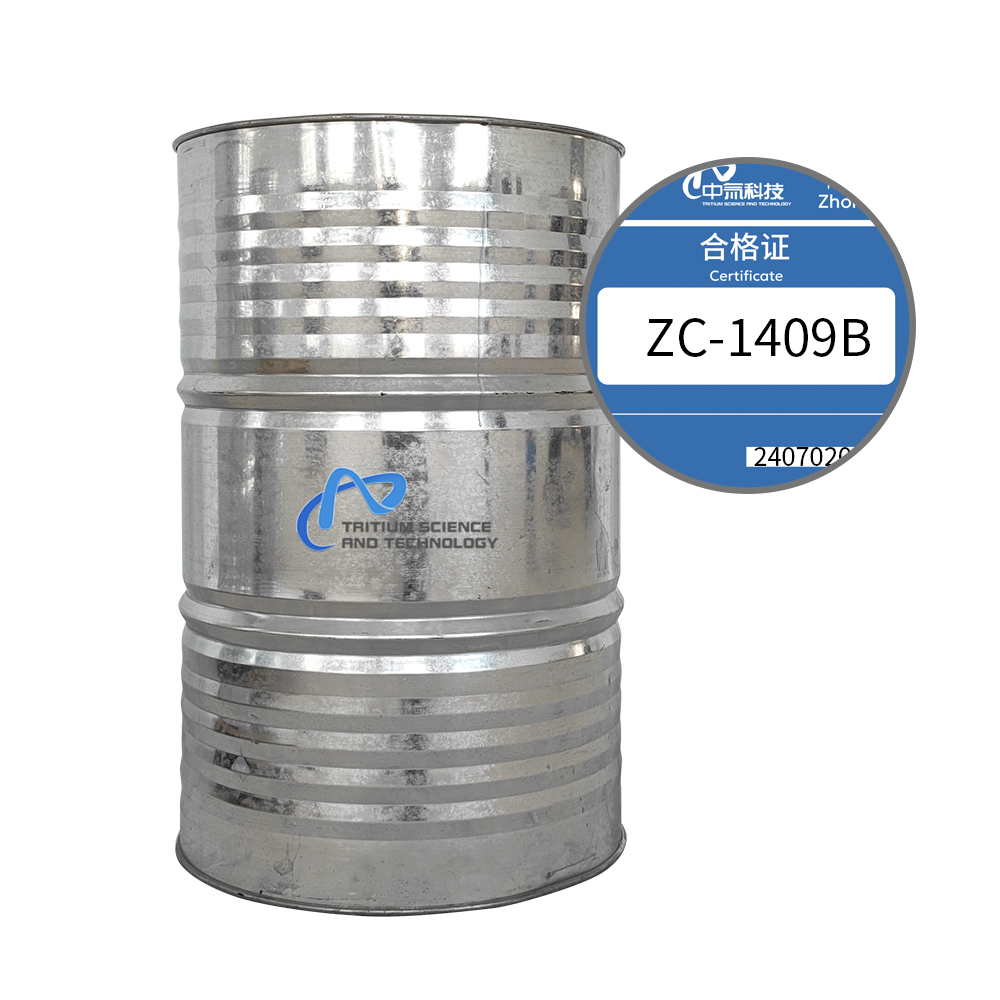

Net weight 220 kilograms, metal drum.Please contact us.
