Structures:DCPC
Processes:Spraying、Hand lay-up Resin
Application:Suitable for high-grade insulation impregnating varnish.
ZC-1107 resin is a DCPD type unsaturated polyester resin mainly composed of DCPD, maleic anhydride, and standard diols. It has been dissolved in crosslinking monomers such as styrene and has moderate viscosity and reactivity.
ZC-1107 resin has high heat resistance, high insulation level, good air drying properties, as well as excellent thermal strength and toughness. Suitable for high-grade insulation impregnating paint.
| Property | Value | Unit | TM |

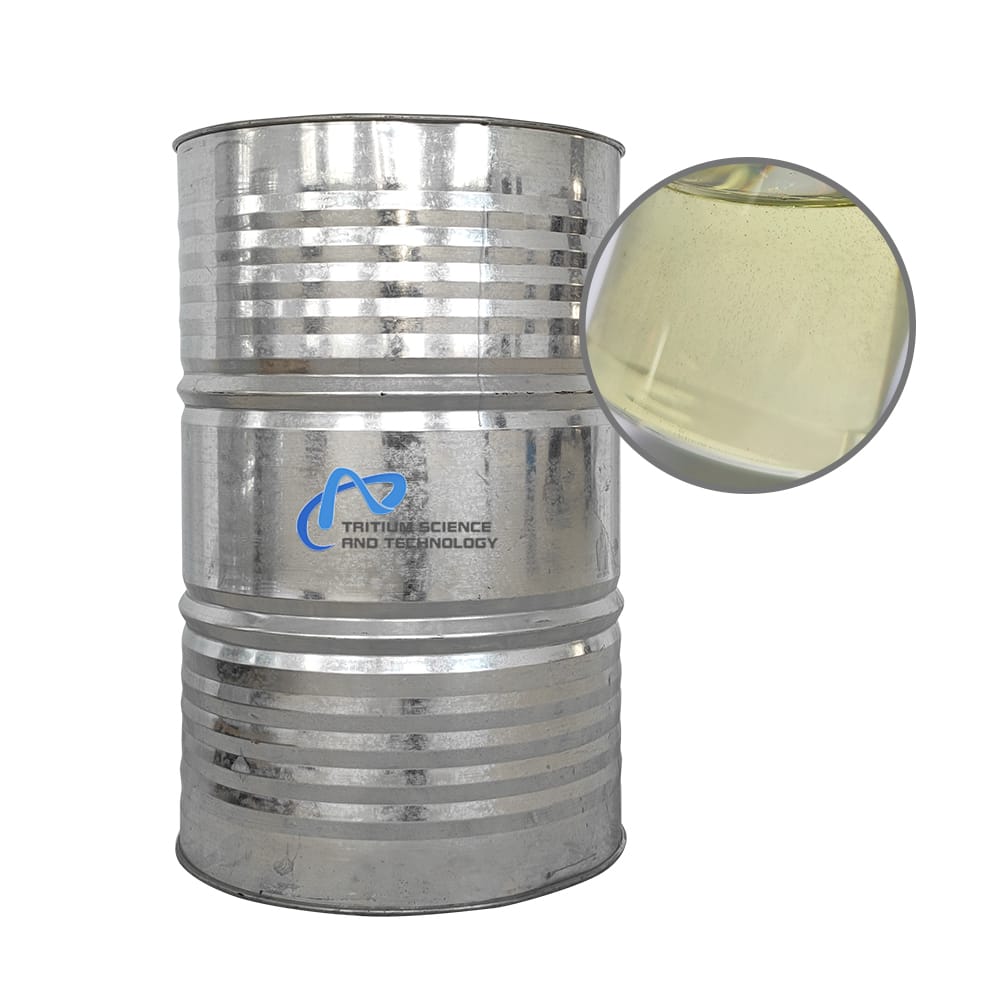

| Appearance | Light yellow transparent viscous liquid | – | – |
| Acid Value | 14-20 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 1.1-1.3 | Pa.s | GB/T 7193-2008 |
| Solid Content | 69-73 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 8-10 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | The casting body is free from defects | – | – |
| Barcol hardness | 45 | – | GB/T 3854-2005 |
| HDT | 110 | ℃ | GB/T 1634-2004 |
| Break Elongation | 1.5 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 45 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3200 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 75 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3200 | Mpa | GB/T 2567-2008 |
1. ZC-1107 resin does not contain wax, accelerators, or thixotropic additives.
2. ZC-1107 resin and its products are sensitive to light and easy to gel when exposed to light, so it should be avoided to open the package or expose it to strong light before use. The packaging of the product should be made of non transparent materials to avoid light transmission.

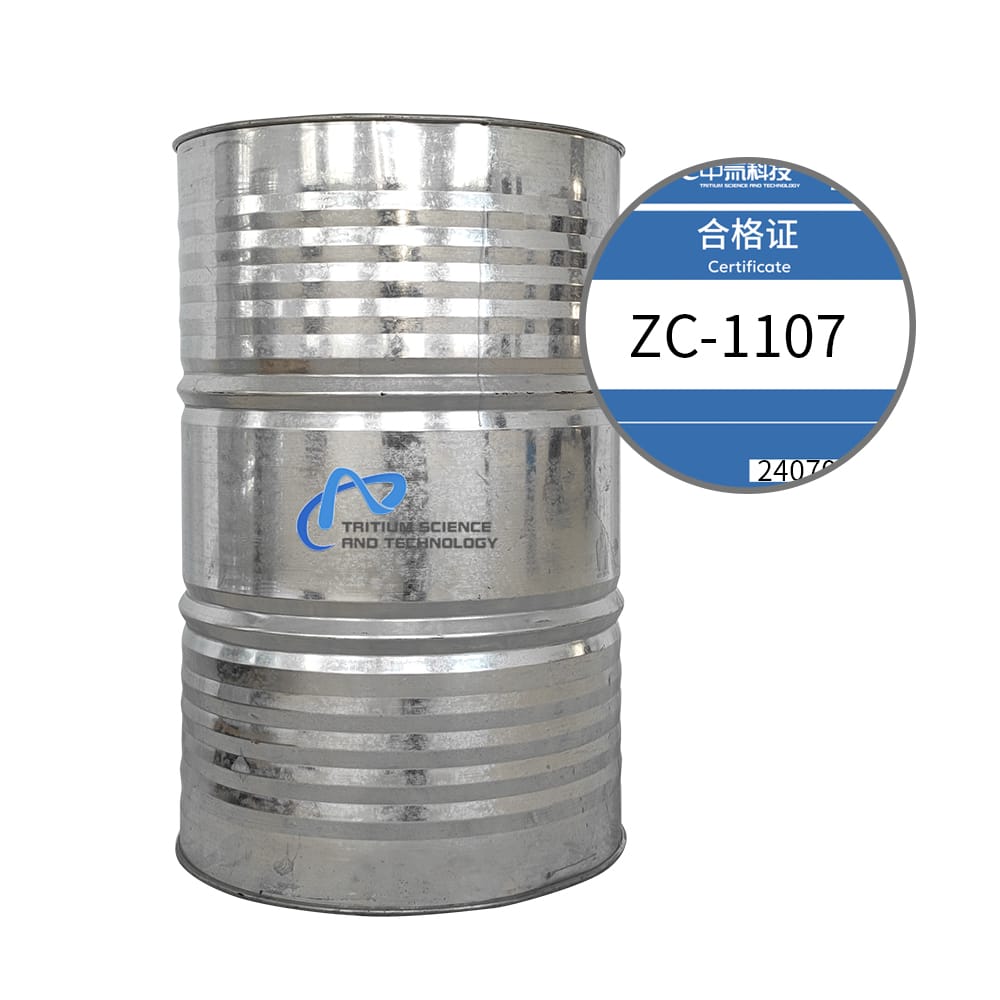

Net weight 220 kilograms, metal drum.Please contact us.
