Polylite™ Unsaturated Polyester Resin ZC-108

Structures:DCPD
Processes:Hand lay-up
Application: Suitable for ordinary fiberglass products, as well as repairing and strengthening stone materials.

+86 18136701732
Info@tritiumupr.com

Product Details

Chemical/Physical Nature

ZC-108 resin is an unsaturated polyester resin with phthalic anhydride, maleic anhydride and standard diols as the main raw materials. It has been dissolved in crosslinked monomers such as styrene and has medium viscosity and medium reactivity.

Benefits and Application

ZC-108 resin curing fast, easy to release mold, with good mechanical properties of FRP, the product is easy to repair, suitable for models and other ordinary thin FRP products.

Liquid Resin Typical Properties

Property Value Unit TM

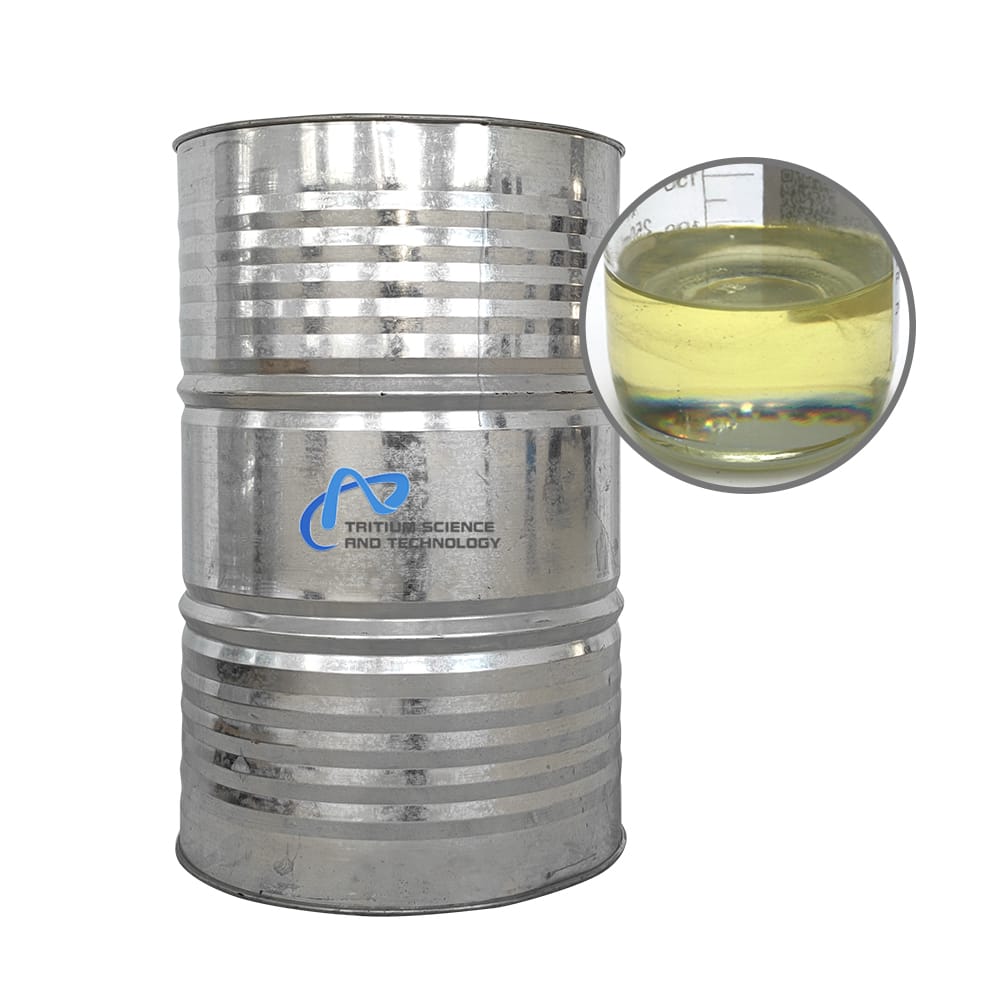

Appearance Light yellow transparent viscous liquid
Acid Value 23-29 mgKOH/g GB/T 2895-2008
Viscosity,25℃ 0.25-0.45 Pa.s GB/T 7193-2008
Solid Content 60-66 % GB/T 7193-2008
Thermal Stability,80℃ ≥24 h GB/T 7193-2008
Gelation time,25℃ 6-18 min GB/T 7193-2008

Unfilled Castings Typical Properties

Property Value Unit TM
Appearance The casting body is free from defects
Babbitt Hardness 42 GB/T 3854-2005
HDT 70 GB/T 1634-2004
Breake elongation 3 % GB/T 2567-2008
Tensile Strength 60 Mpa GB/T 2567-2008
Tensile modulus 2800 Mpa GB/T 2567-2008
Flexural strength 100 Mpa GB/T 2567-2008
Flexural modulus 3000 Mpa GB/T 2567-2008

FRP Typical Properties

Property Value Unit TM
Barcol Hardness 34 GB/T 3584-2005
Flexural strength 300 Mpa GB/T 1449-2005
Flexural modulus 16500 Mpa GB/T 1449-2005
Tensile strength 300 Mpa GB/T 1447-2005
Tensile modulus 15500 Mpa GB/T 1447-2005

Application Guidelines

ZC-108 resin contains wax and is free of accelerators and thixotropic AIDS.

Package

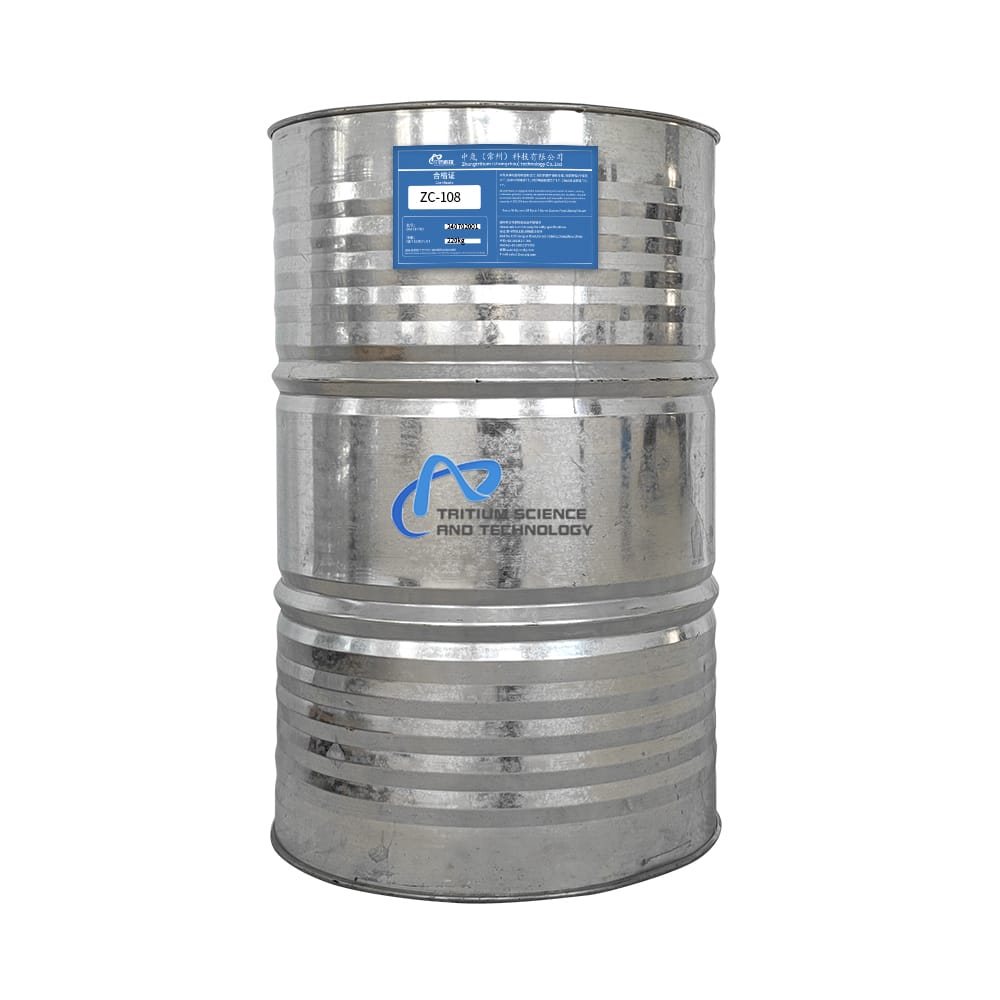

Net weight is 220 kg, metal barrel.Special packaging requirements, please contact us.
