Polylite™ ZC-5639P-1 Unsaturated Polyester Resin
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
We are the resin manufacturer you need!
Processes:Compression Molding
Application:Suitable for making special products such as BMC manhole covers and traffic guardrail bases.
ZC-1019 resin is a PTA type unsaturated polyester resin with purified terephthalic acid, maleic anhydride and standard diol as main raw materials. It has been dissolved in styrene cross-linking monomer and has high viscosity and high reactivity.
ZC-1019 resin has stable thickening, good strength and toughness, small shrinkage and good water resistance.Suitable for making special products such as BMC manhole covers and traffic guardrail bases.
| Property | Value | Unit | TM |
| Appearance | Light Yellow transparent viscous liquid | – | – |
| Acid Value | ≤25 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 2.5-3.0 | Pa.s | GB/T 7193-2008 |
| Solid Content | 69-75 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 15-17 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | The casting body is defect free | – | – |
| Barcol hardness | 35 | – | GB/T 3854-2005 |
| HDT | 65 | ℃ | GB/T 1634-2004 |
| Break Elongation | 3 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 55 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 2600 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 2700 | Mpa | GB/T 2567-2008 |
1. ZC-1019 resin does not contain wax, accelerator or thixotropic agent.
2. ZC-1019 is usually used in combination with ZC-2629 for low shrinkage molding compound. The recommended ratio of ZC-1019 to ZC-2629 is 65:35, and the molding temperature is 175±10℃. It can also be adjusted according to the actual situation.
3. To ensure the storage of SMC/BMC materials, stabilizers should be added appropriately during production.
4. Reference formula of BMC initial paste for manhole covers:
| ZC-1019 resin | 65 | ZC-2629 low shrinkage agent | 35 | Calcium carbonate | 240 | Quartz sand | 120 | Zinc stearate | 2 | Pigment paste | appropriate amount | TBPB | 1.5 | Thickener | appropriate amount (or no addition) |

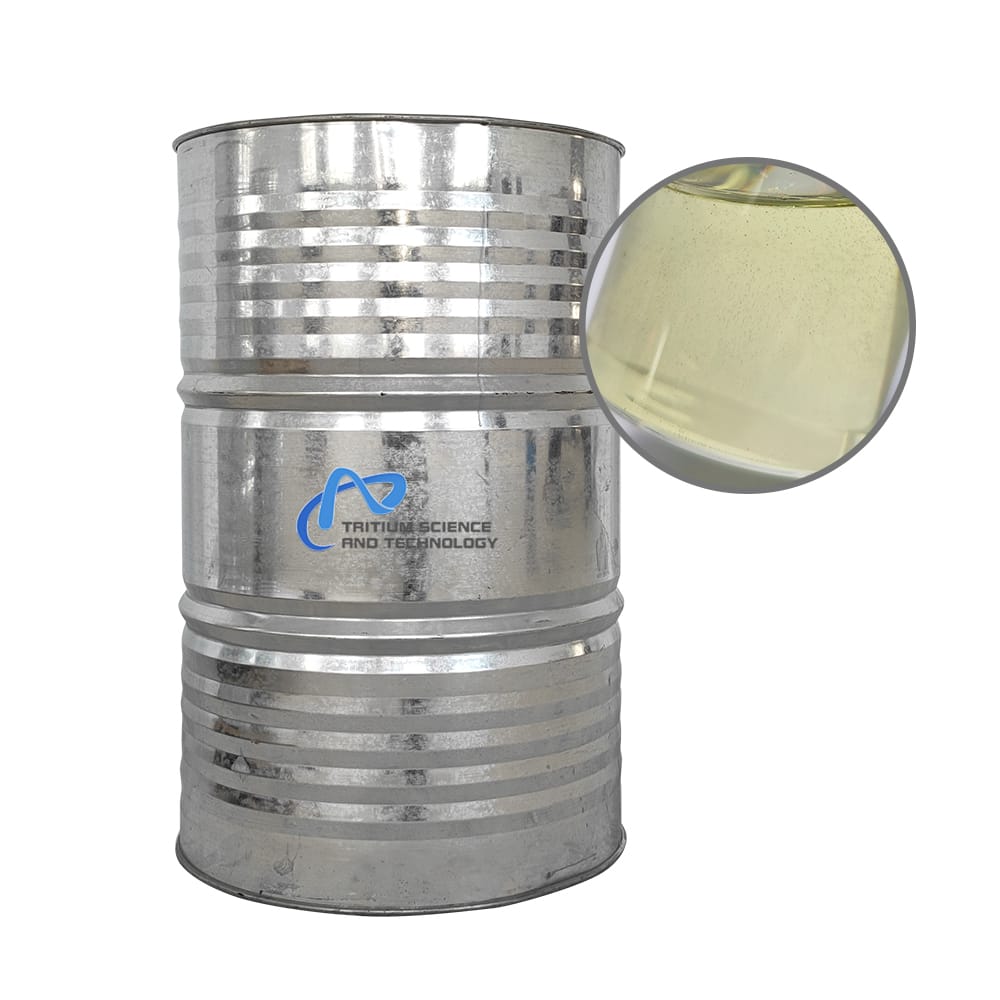

Net weight 220 kilograms, metal drum.Please contact us.
