Polylite™ ZC-5639P-1 Unsaturated Polyester Resin
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
We are the resin manufacturer you need!
Structures:Isophthalic
Processes:Hand lay-up
Application:Suitable for various high heat-resistant FRP products and FRP molds.

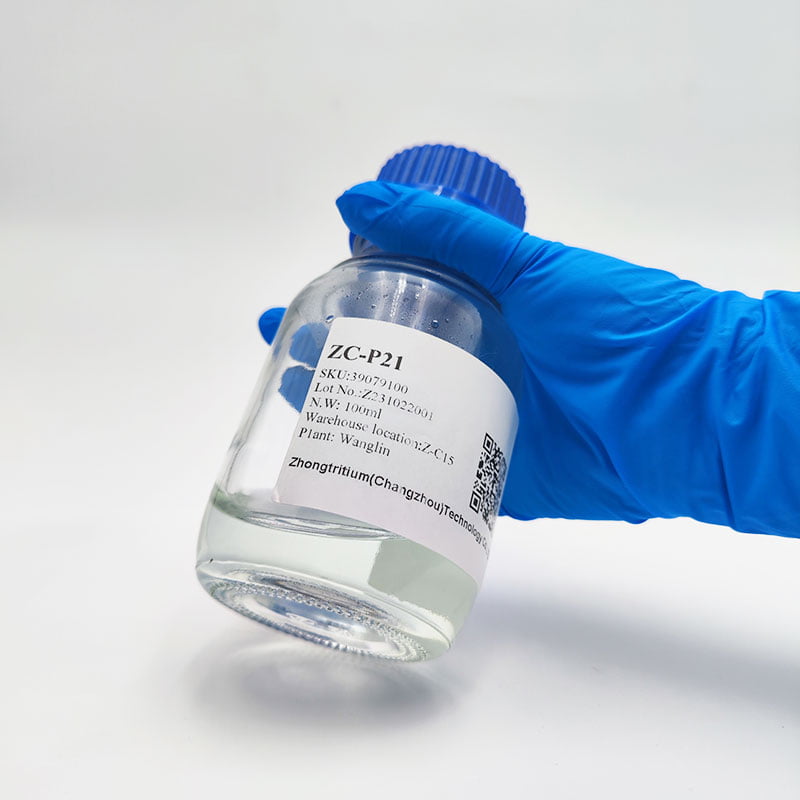

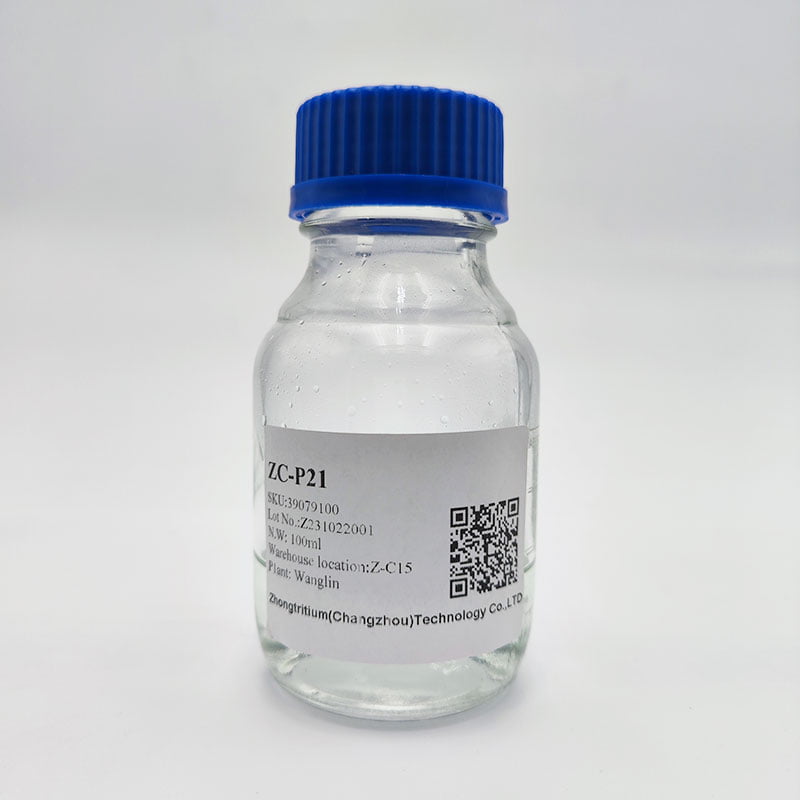

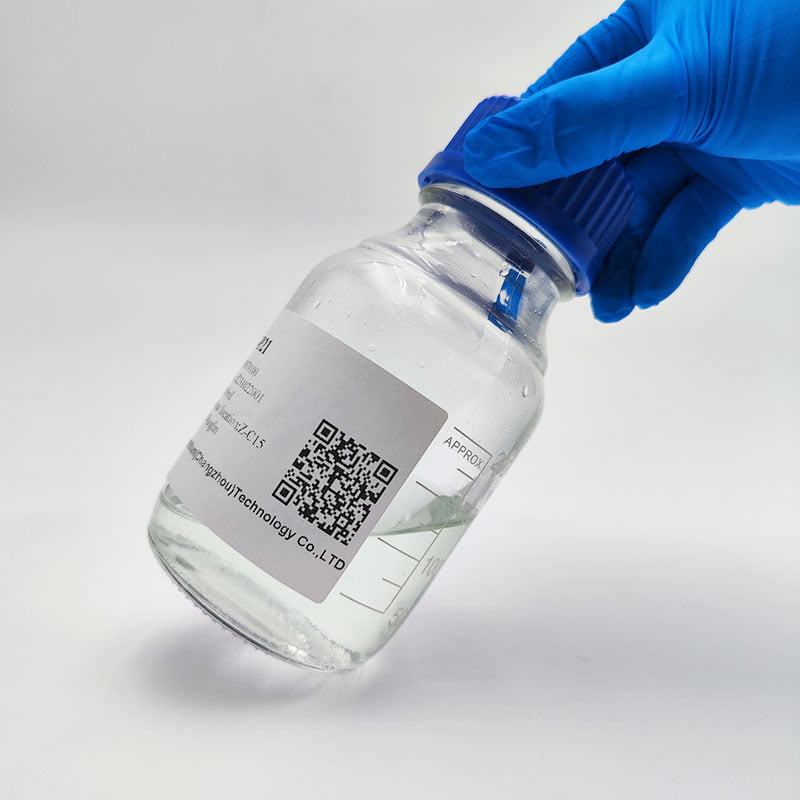

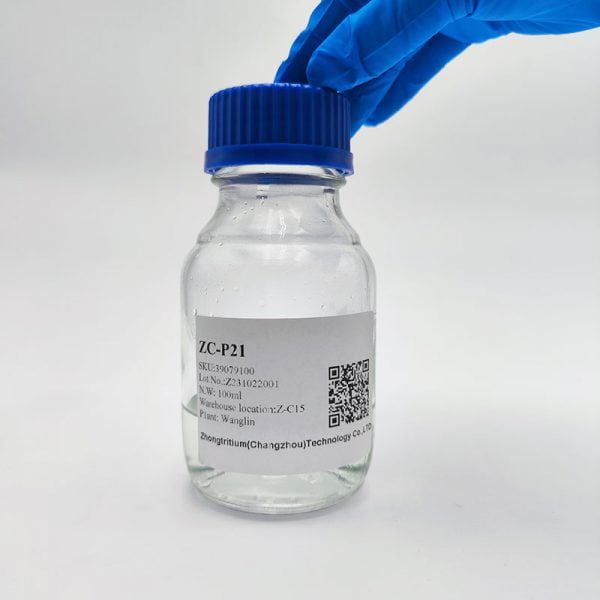

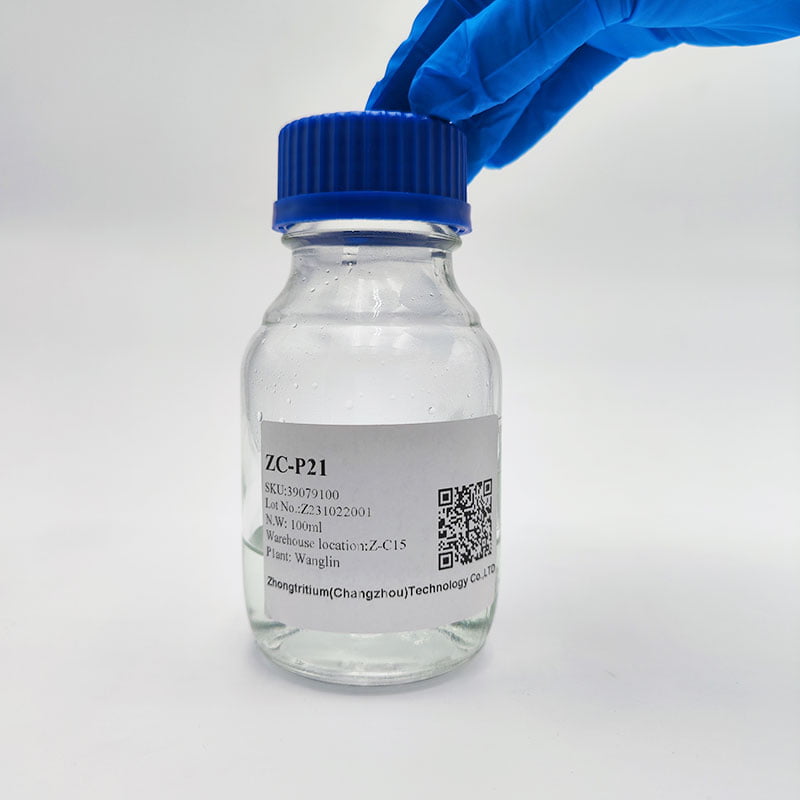

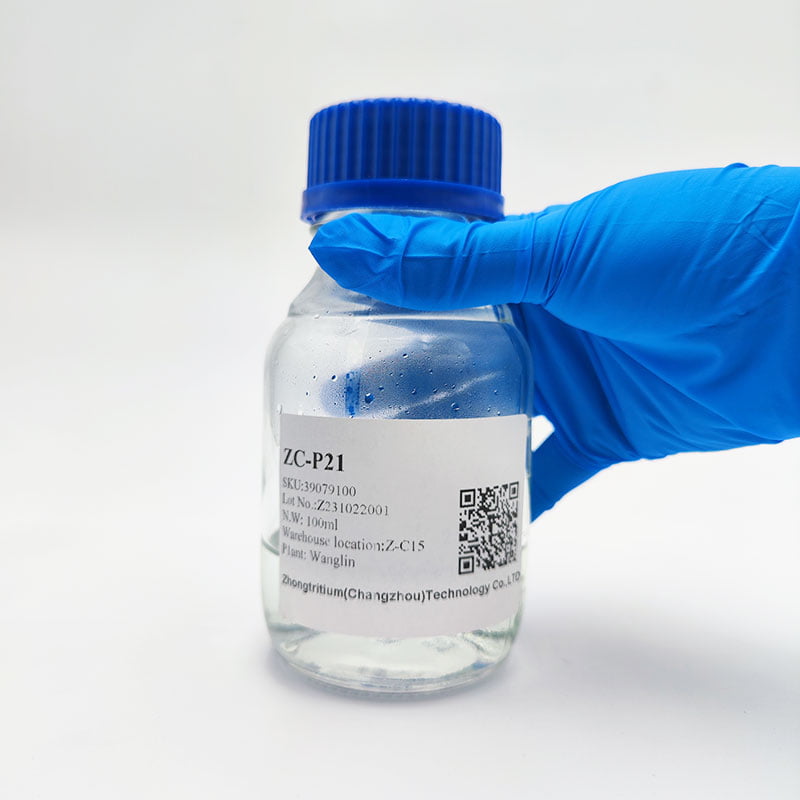

ZC-P21 Resin is an intermediate based on isophthalic acid, fumaric acid and standard glycol.
Benzene-type unsaturated polyester resin has been dissolved in styrene cross-linking monomer and has medium viscosity and higher reactivity.
ZC-P21 resin is a heat-resistant HE type with good acid resistance and high heat resistance.
Good strength and rigidity. Suitable for various high heat-resistant FRP products and FRP molds.
| Property | Value | Unit | TM |
| Appearance | Light yellow transparent viscous liquid | – | – |
| Acid Value | 21-27 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.35-0.65 | Pa.s | GB/T 7193-2008 |
| Solid Content | 58-64 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gel time | 10-16 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Cast body without defects | – | – |
| Barcol Hardness | 46 | – | GB/T 3854-2005 |
| HDT | 120 | ℃ | GB/T 1634-2004 |
| Break Elongation | 1.8 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 55 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol Hardness | 67 | – | GB/T 3854-2005 |
| Tensile Strength | 300 | Mpa | GB/T 1447-2005 |
| Tensile Modulus | 16000 | Mpa | GB/T 1447-2005 |
| Flexural Strength | 320 | Mpa | GB/T 1449-2005 |
| Flexural Modulus | 17000 | Mpa | GB/T 1449-2005 |
1. ZC-1. P21 resin contains wax and does not contain accelerators and thixotropic additives.
2. When selecting heat-resistant and chemical-resistant anti-corrosion resin, the appropriate resin should be selected based on the actual medium and temperature of the product, and the company’s “Heat-resistant and chemical-resistant medium usage inquiry form” and confirmed through tests.
3. Post-curing of heat-resistant and corrosion-resistant FRP products is particularly important. The products should be used after they are fully cured.
ZC-P21 Resin packaging: net weight 200 kg, metal drum. Special packaging requirements please
Negotiable.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:It is suitable for small and medium-sized FRP products in RTM/vacuum infusion and other processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:. It is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Processes:Compression Molding
Application:Suitable for making special products such as BMC manhole covers and traffic guardrail bases.
Structures:NPG Resin
Processes:SMC/BMC
Application:Suitable for BMC electric, automobile and construction field like and other construction field normal SMC electricity boxes, insulating plate, seats, car bumper, decoration plate and SMC basin.
Structures:DCPC
Processes:Filament Winding、Hand lay-up Resin
Application:Suitable for high-grade insulation impregnating varnish.
Resin belongs to dangerous goods, and with the processing time, it will take approximately 5-15 working days to deliver
No district limit,We can export our chemicals to every corner of the world.
Yes.At present, We have three member factories, two of which are in the 300000 ton level, one under construction in the 200000 ton level, and one CNAS certified research and development center.
Samples generally deliver by international express, a large number of goods can be transported by land or water.
Specializing in unsaturated polyester resin 100% tested and working before shipment .best price will grant you as per your quantity .
We have been certified by Lloyd's Register and China Classification Society
We have plans to establish overseas factories in places like Vietnam
Resin formulation fine-tuning andformulation improvement can further improve theenvironmental profile of composites
We intelligently identify potential occupational hazards, implement control measures to reduce risks, provide necessary training and equipment, and monitor the occupational health status of employees.
The minimum order quantity for our products varies depending on the product. Please contact us for more information.
Yes, we offer OEM services.
