Unsaturated Polyester Resin ZC-861P Orthophthalic Resin

Structures:Orthophthalic Resin
Processes:Casting Resin
Application:It has been dissolved in crosslinking monomers such as styrene and has low viscosity and moderate reactivity.

+86 18136701732
Info@tritiumupr.com

Product Details

Chemical/Physical Nature

ZC-861P resin is a pre promoted unsaturated polyester resin with phthalic anhydride, maleic anhydride, and standard diols as the main raw materials. It has been dissolved in crosslinking monomers such as styrene and has low viscosity and moderate reactivity.

Benefits and Application

ZC-861P resin has good leveling and defoaming properties, fast drying, and easy polishing. Suitable for stone base coating, repair, and reinforcement. It can also be used for ordinary fiberglass products, etc.

Liquid Resin Typical Properties

Property Value Unit TM

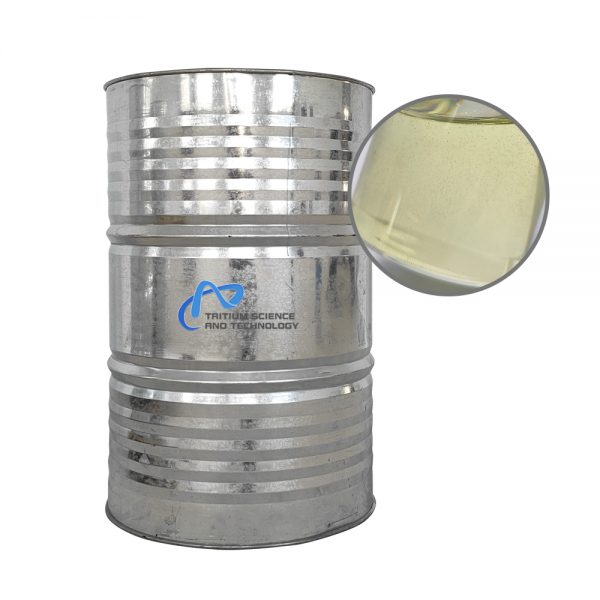

Appearance Yellow transparent viscous liquid
Acid Value 18-26 mgKOH/g GB/T 2895-2008
Viscosity,25℃ 0.3-0.5 Pa.s GB/T 7193-2008
Solid Content 59-67 % GB/T 7193-2008
Thermal Stability,80℃ ≥24 h GB/T 7193-2008
Gel time,25℃ 5.5-6.5 min GB/T 7193-2008

Unfilled Castings Typical Properties

Property Value Unit TM
Appearance Casting body has no defects
Barcol Hardness 42 GB/T 3854-2005
HDT 55 GB/T 1634-2004
Break Elongation 2.5 Mpa GB/T 2567-2008
Tensile Strength 60 Mpa GB/T 2567-2008
Tensile Modulus 3300 Mpa GB/T 2567-2008
Flexural Strength 110 Mpa GB/T 2567-2008
Flexural Modulus 3300 Mpa GB/T 2567-2008

Application Guidelines

1. ZC-861P resin contains wax and accelerators, and does not contain thixotropic additives.
2. Recommended curing system: Special colorless accelerator 0-1.5%, MEKP curing agent 1-2%. In practical operation, the dosage of curing agent and accelerator depends on environmental conditions such as temperature and humidity, and is determined through small-scale testing at the construction site.
3. Suggested coating process for stone veneer: apply one layer of ZC-861P resin primer and two layers of 8866A-1 resin or 8866 resin topcoat.

Package

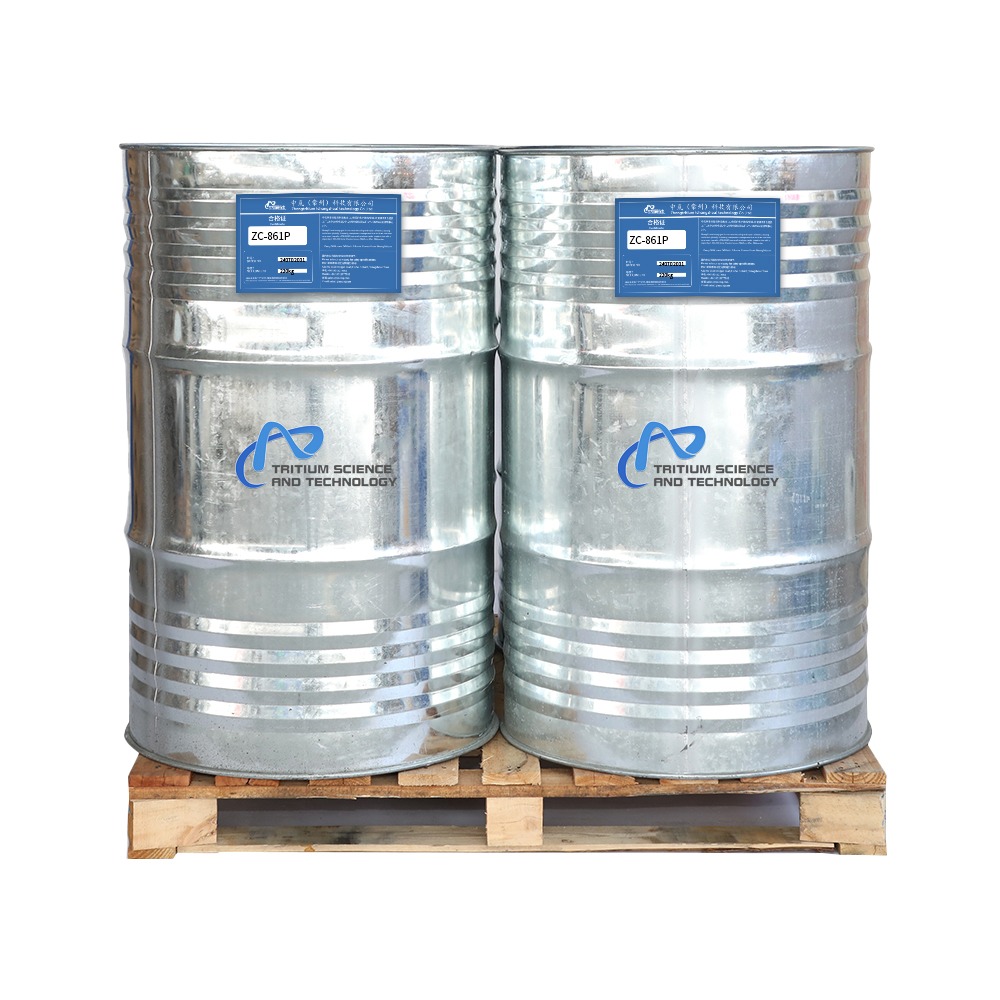

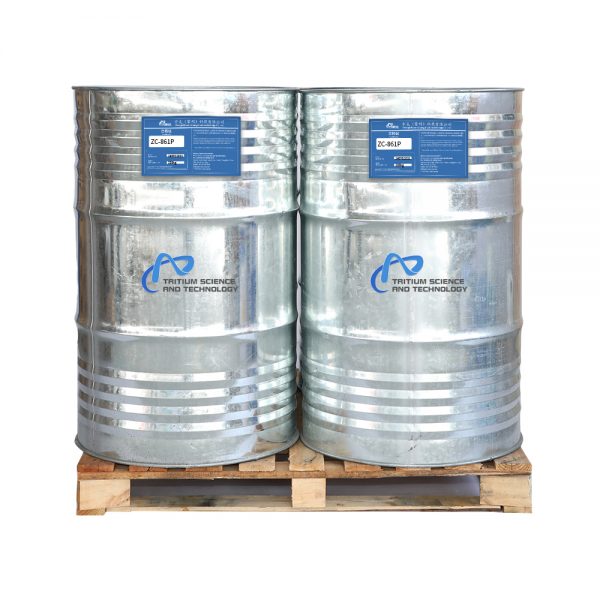

Net weight is 220 kg, metal barrel.Please contact us for special packaging requirements.
