Unsaturated Polyester Resin ZC-591 Ophthalic Resin

Structures:Orthophthalic
Processes:Hand Lay-up Resin
Application:It has been dissolved in cross-linking monomers such as styrene and MMA, and has low viscosity and medium reactivity.

+86 18136701732
Info@tritiumupr.com

Product Details

Chemical/Physical Nature

ZC-591 resin is an o-phthalic unsaturated polyester resin with phthalic anhydride, maleic anhydride and standard diols as main raw materials. It has been dissolved in cross-linking monomers such as styrene and MMA, and has low viscosity and medium reactivity.

Benefits and Application

ZC-591 resin has good strength and rigidity, excellent light transmittance, and good water and weather resistance. It is suitable for hand lay-up process to make high light transmittance fiberglass sheets.

Liquid Resin Typical Properties

Property Value Unit TM

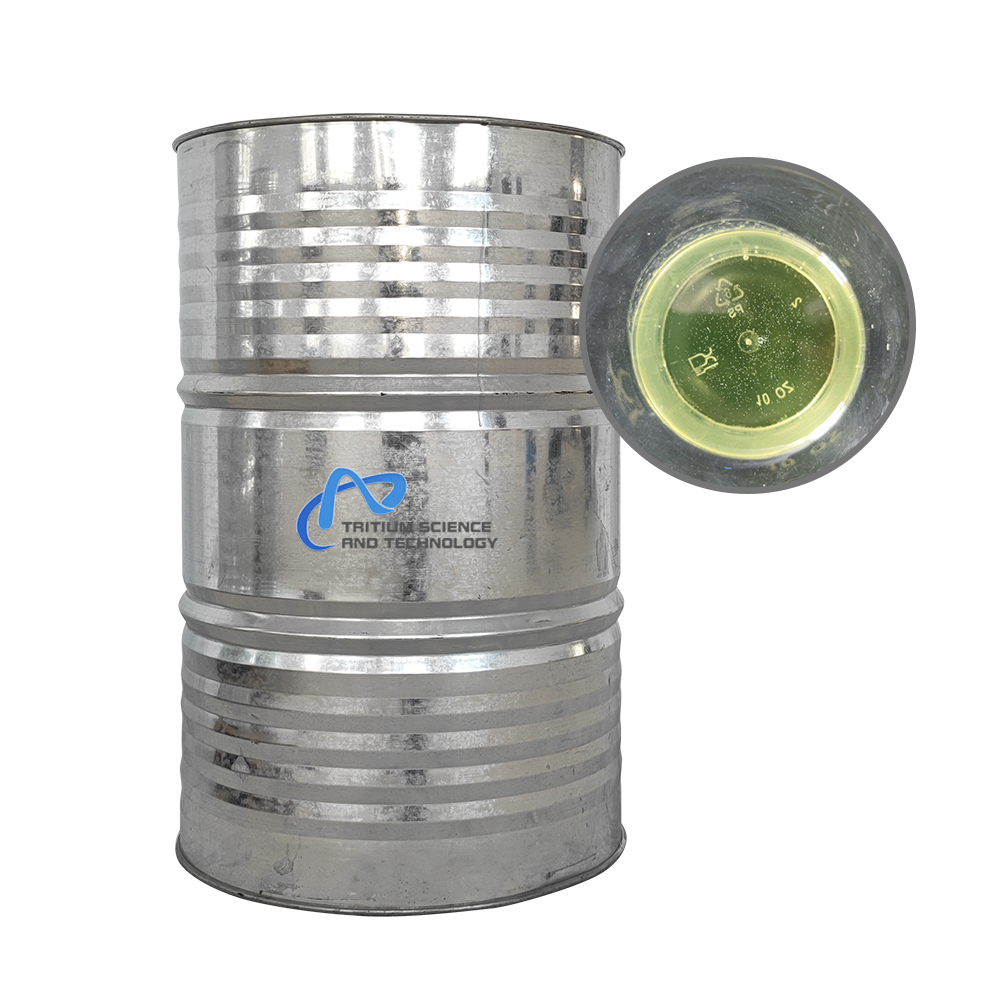

Appearance Yellow transparent viscous liquid
Acid Value 28-34 mgKOH/g GB/T 2895-2008
Viscosity,25℃ 0.14-0.22 Pa.s GB/T 7193-2008
Solid Content 59-65 % GB/T 7193-2008
Thermal Stability,80℃ ≥24 h GB/T 7193-2008
Gel time,25℃ 30-40 min GB/T 7193-2008

Unfilled Castings Typical Properties

Property Value Unit TM
Appearance Casting body has no defects
Barcol Hardness 43 GB/T 3854-2005
HDT 65 GB/T 1634-2004
Break Elongation 1.7 Mpa GB/T 2567-2008
Tensile Strength 55 Mpa GB/T 2567-2008
Tensile Modulus 3700 Mpa GB/T 2567-2008
Flexural Strength 95 Mpa GB/T 2567-2008
Flexural Modulus 3800 Mpa GB/T 2567-2008

Application Guidelines

1. ZC-591 resin contains wax, but does not contain accelerators and thixotropic additives.

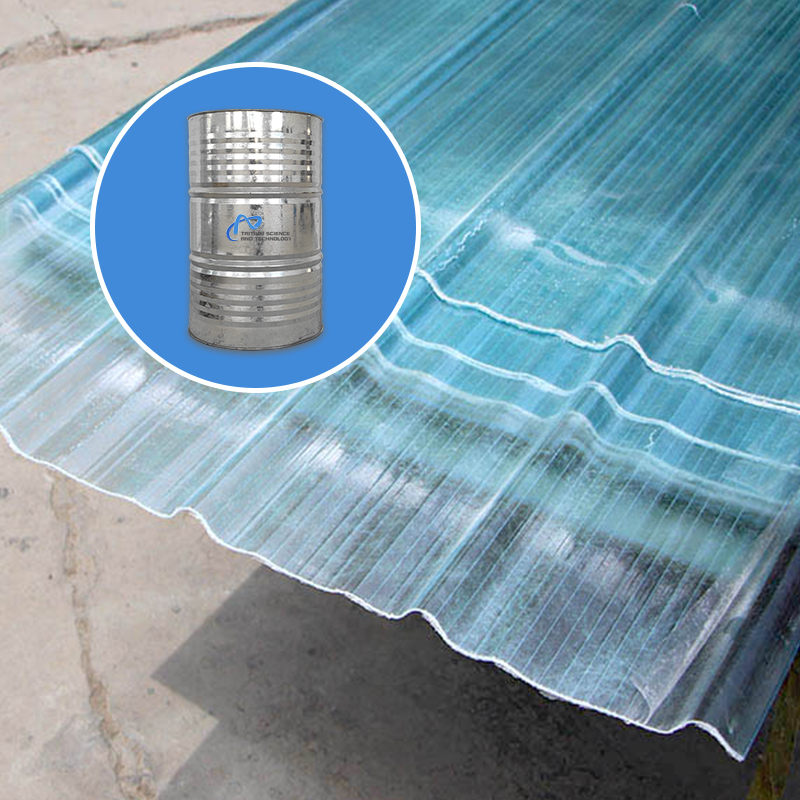

2. ZC-591 resin is suitable for hand lay-up process to make light-transmitting panels with high weather resistance.
3. When selecting glass fiber, the refractive index of glass fiber and resin should be matched to ensure the light transmittance of the panel.

Package

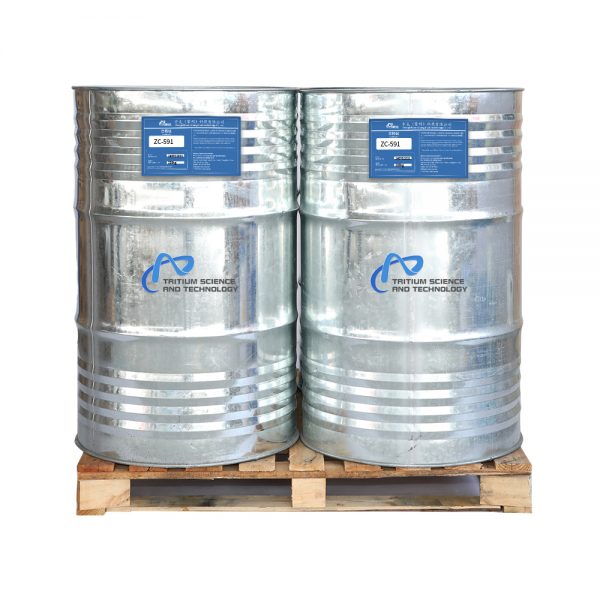

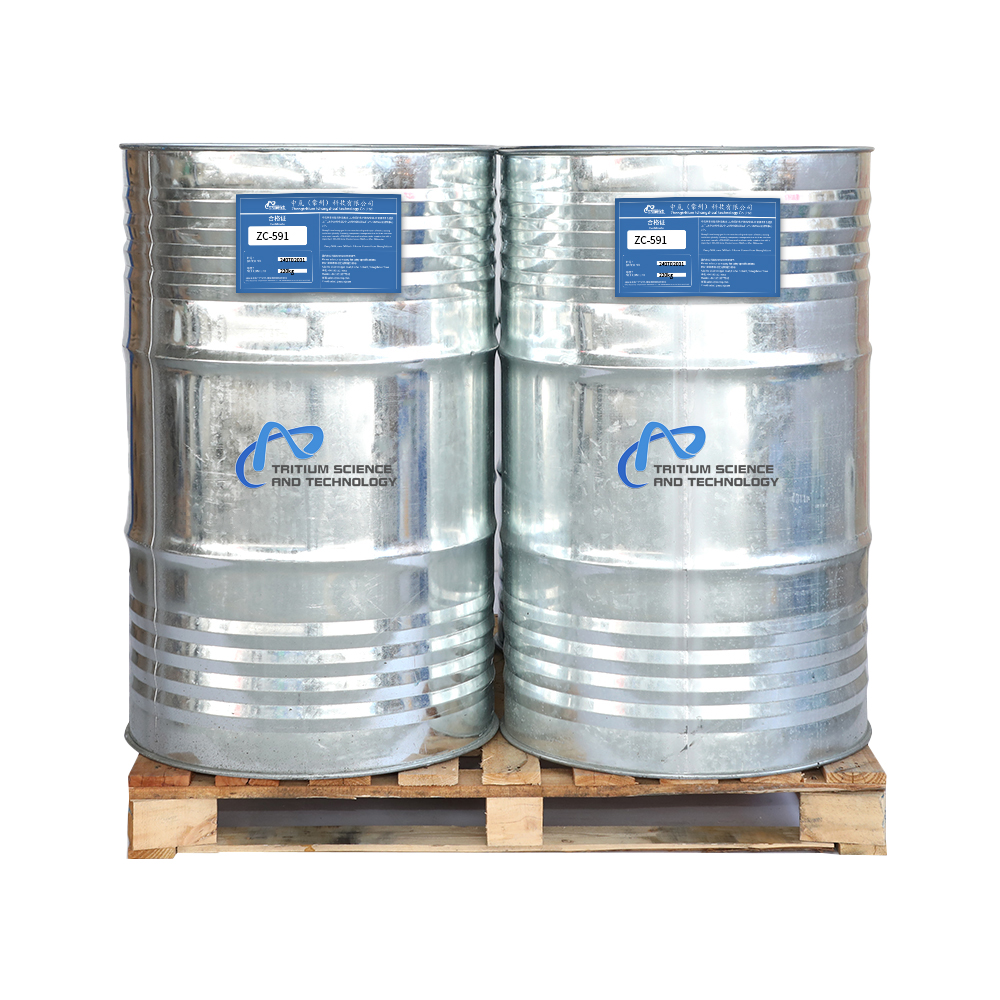

Net weight is 220 kg, metal barrel.Please contact us for special packaging requirements.
