Polylite™ ZC-5639P-1 Unsaturated Polyester Resin
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Structures:Isophthalic NPG
Processes:SMC Molding
Application:Suitable for high performance SMC/BMC products for automotive, electrical and construction applications.

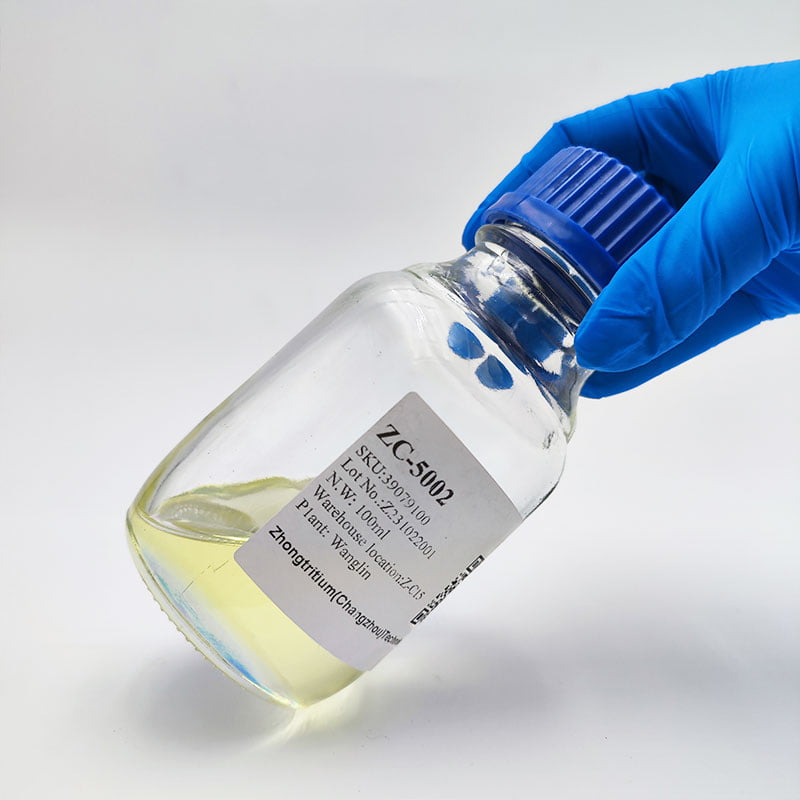

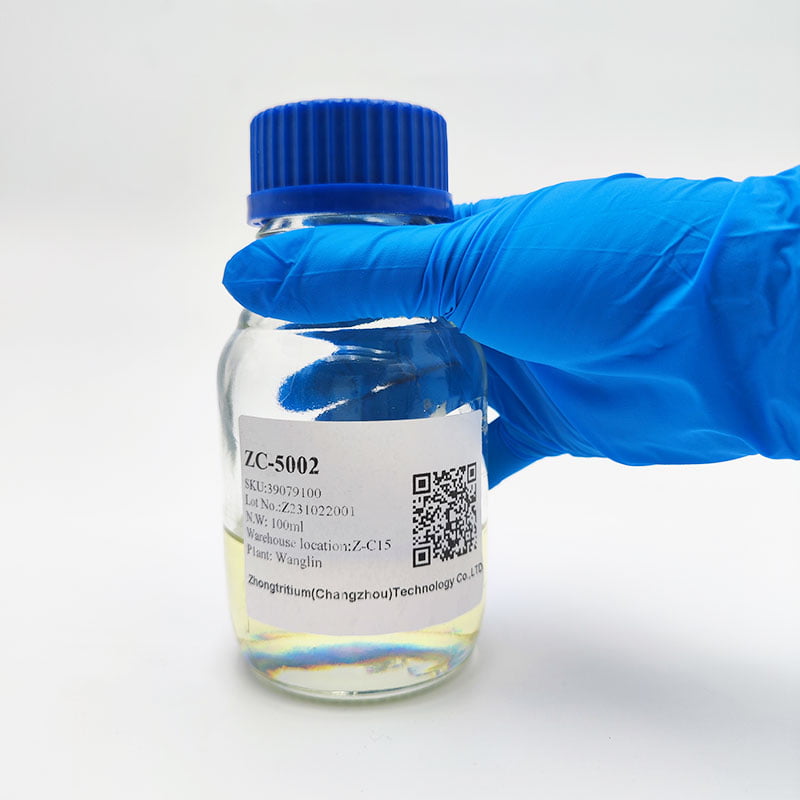

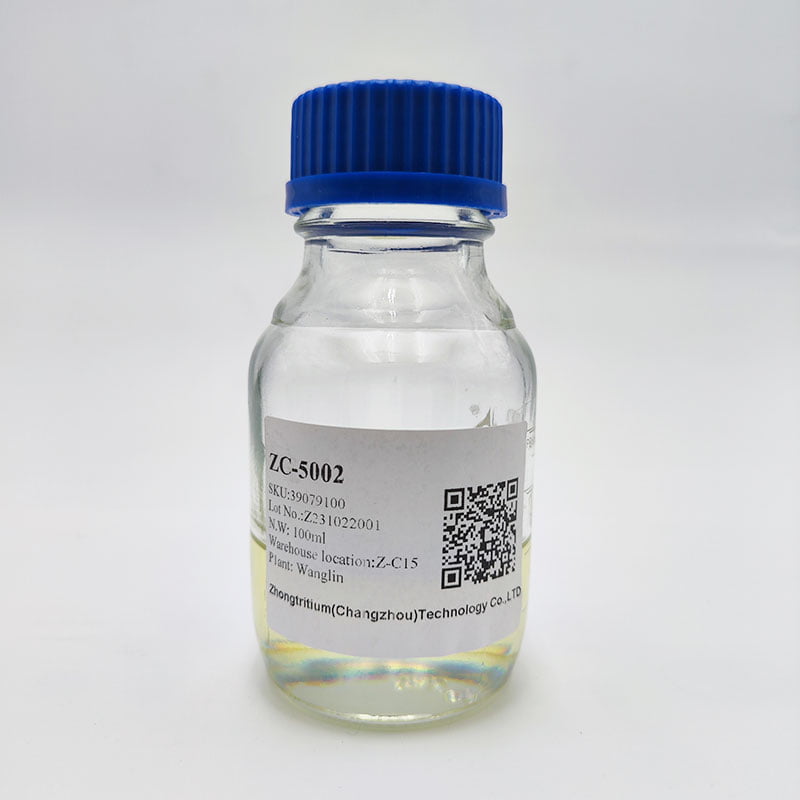

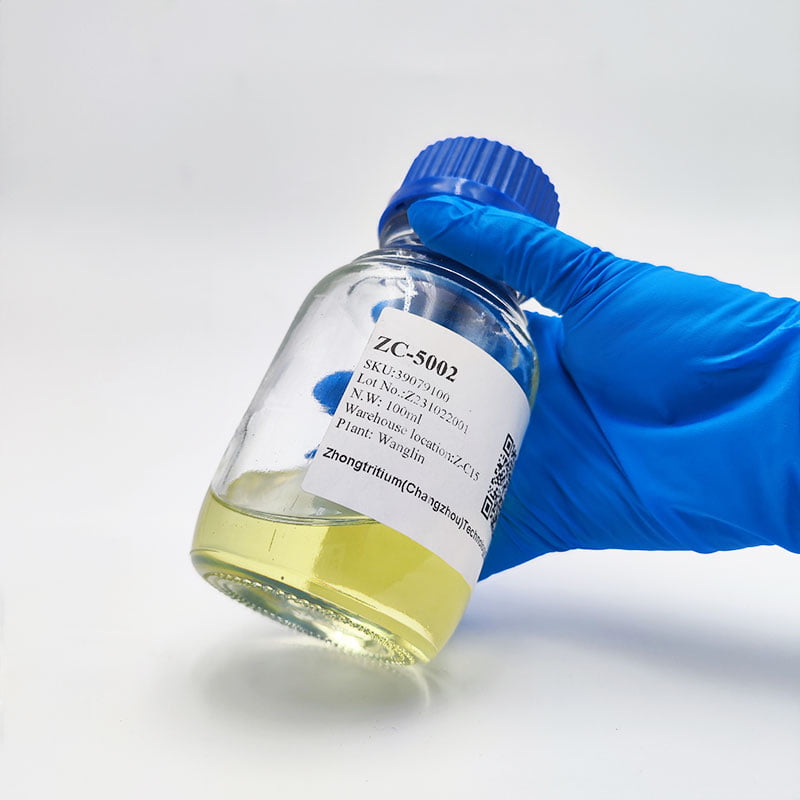

ZC-5002 resin is a neopentyl glycol type unsaturated polyester resin with maleic anhydride, neopentyl glycol and other standard diols as the main raw materials. It has been dissolved in styrene crosslinked monomer and has high viscosity and high reactivity.
ZC-5002 resin thickens and stability, high heat resistance, high gloss, good coloring. Suitable for high performance SMC/BMC products for automotive, electrical and construction applications.
Property | Value | Unit | TM |
Appearance | Light yellow transparent viscous liquid | – | – |
Acid Value | 14-19 | mgKOH/g | GB/T 2895-2008 |
Viscosity,25℃ | 1.6-1.9 | Pa.s | GB/T 7193-2008 |
Solid Content | 64-69 | % | GB/T 7193-2008 |
Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
Gel time | 18-25 | min | GB/T 7193-2008 |
Property | Value | Unit | TM |
Barcol Hardness | 45 | – | GB/T 3584-2005 |
Flexural Strength | 50 | Mpa | GB/T 1449-2005 |
Flexural Modulus | 3000 | Mpa | GB/T 1449-2005 |
Tensile Strength | 80 | Mpa | GB/T 1447-2005 |
Tensile Modulus | 3000 | Mpa | GB/T 1447-2005 |
1. ZC-5002 resin does not contain wax, accelerators and thixotropic auxiliaries.
2.In order to ensure the storage of SMC/BMC material, the production should be appropriate to add stabilizer.
ZC-5002 resin packaging: net weight 220 kg, metal drums. Please contact us for special packing requirements.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:It is suitable for small and medium-sized FRP products in RTM/vacuum infusion and other processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:. It is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Processes:Compression Molding
Application:Suitable for making special products such as BMC manhole covers and traffic guardrail bases.
Structures:NPG Resin
Processes:SMC/BMC
Application:Suitable for BMC electric, automobile and construction field like and other construction field normal SMC electricity boxes, insulating plate, seats, car bumper, decoration plate and SMC basin.
Structures:DCPC
Processes:Filament Winding、Hand lay-up Resin
Application:Suitable for high-grade insulation impregnating varnish.
Resin belongs to dangerous goods, and with the processing time, it will take approximately 5-15 working days to deliver
No district limit,We can export our chemicals to every corner of the world.
Yes.At present, We have three member factories, two of which are in the 300000 ton level, one under construction in the 200000 ton level, and one CNAS certified research and development center.
Samples generally deliver by international express, a large number of goods can be transported by land or water.
Specializing in unsaturated polyester resin 100% tested and working before shipment .best price will grant you as per your quantity .
We have been certified by Lloyd's Register and China Classification Society
We have plans to establish overseas factories in places like Vietnam
Resin formulation fine-tuning andformulation improvement can further improve theenvironmental profile of composites
We intelligently identify potential occupational hazards, implement control measures to reduce risks, provide necessary training and equipment, and monitor the occupational health status of employees.
The minimum order quantity for our products varies depending on the product. Please contact us for more information.
Yes, we offer OEM services.
