Polylite™ ZC-5639P-1 Unsaturated Polyester Resin
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Structures:Bisphenol A
Processes:Hand lay-up
Application:ZC-3001 UPR resin is suitable for corrosion-resistant fiberglass pipes, containers, and storage tanks with higher corrosion resistance requirements.

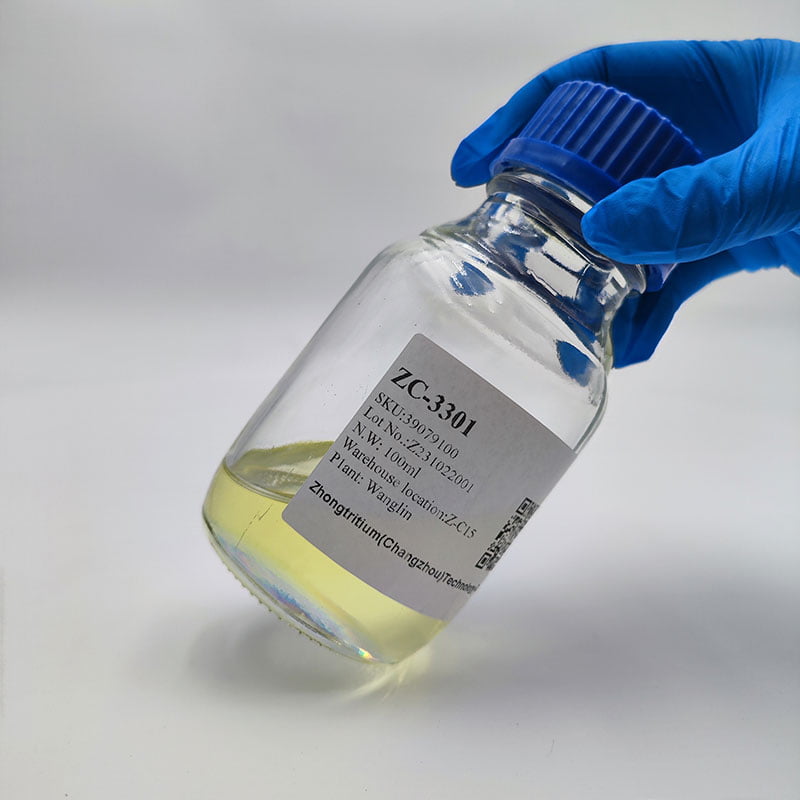

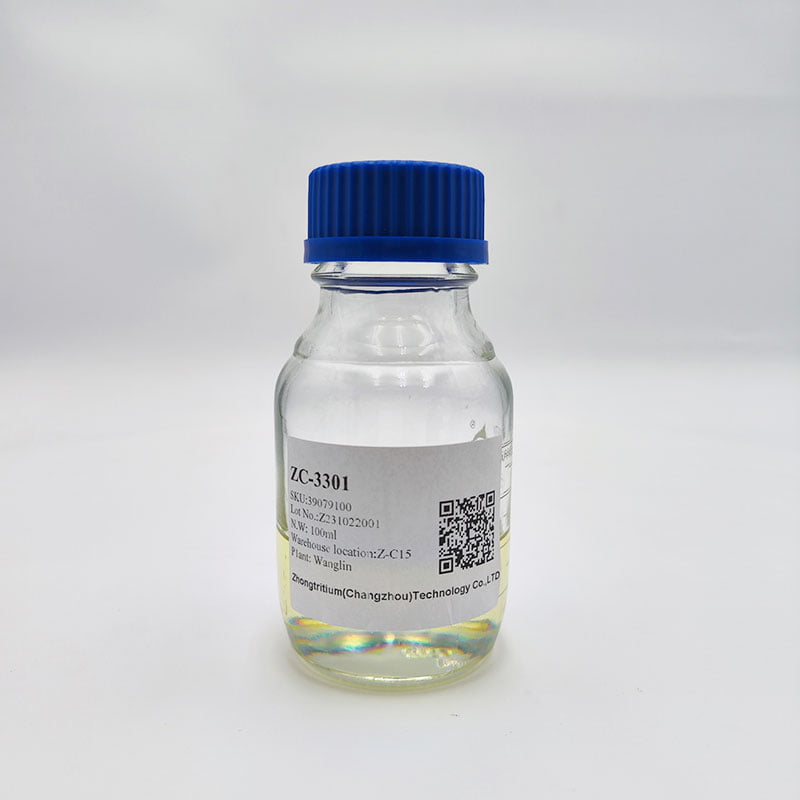

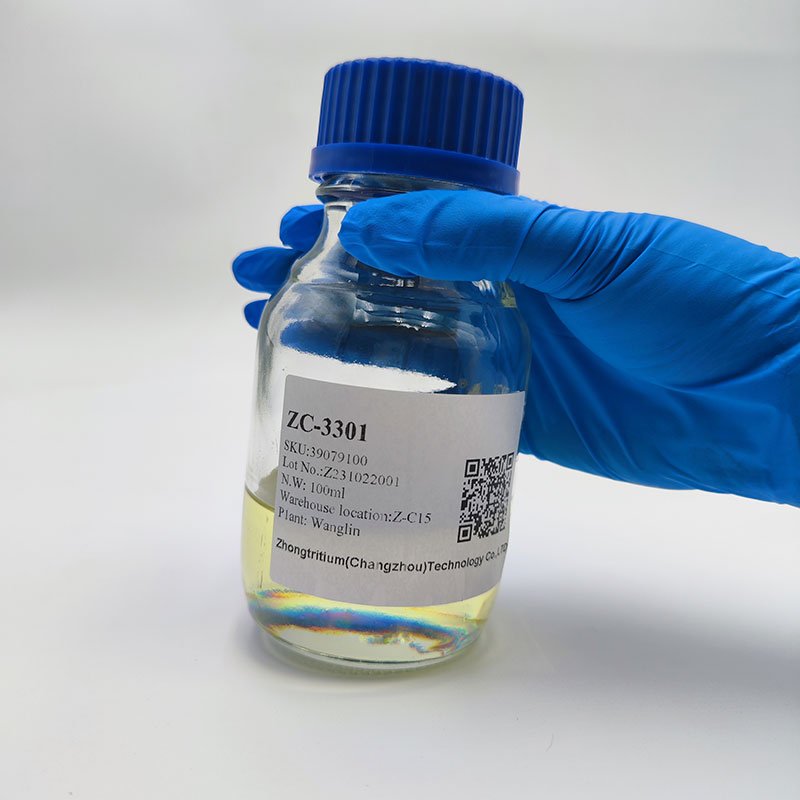

ZC-3301 resin is a bisphenol Type A unsaturated polyester resin with D-33 monomer, maleic anhydride and standard glycol as the main raw materials,dissolved in styrene cross-linking monomer, has medium viscosity and higher reactivity.
ZC-3301 resin is a chemically resistant CEE type with good corrosion resistance and high Mechanical properties and heat distortion temperature, suitable for corrosion-resistant fiberglass pipes, containers, and storage tanks with higher corrosion resistance requirements.
Property | Value | Unit | TM |
Appearance | Light yellow transparent viscous liquid | – | – |
Acid Value | 10-16 | mgKOH/g | GB/T 2895-2008 |
Viscosity,25℃ | 0.40-0.50 | Pa.s | GB/T 7193-2008 |
Solid Content | 57-63 | % | GB/T 7193-2008 |
Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
Gelation time,25℃ | 10-25 | min | GB/T 7193-2008 |
Property | Value | Unit | TM |
Appearance | Cast body without defects | – | – |
Barcol Hardness | 45 | – | GB/T 3854-2005 |
HDT | 115 | ℃ | GB/T 1634-2004 |
Break Elongation | 2 | % | GB/T 2567-2008 |
Tensile Strength | 60 | Mpa | GB/T 2567-2008 |
Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
Flexural Strength | 100 | Mpa | GB/T 2567-2008 |
Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
Property | Value | Unit | TM |
Barcol Hardness | 67 | – | GB/T 3854-2005 |
Tensile Strength | 300 | Mpa | GB/T 1447-2005 |
Tensile Modulus | 16500 | Mpa | GB/T 1447-2005 |
Flexural Strength | 310 | Mpa | GB/T 1449-2005 |
Flexural Modulus | 17000 | Mpa | GB/T 1449-2005 |
1. ZC-3301 resin does not contain wax, accelerators and thixotropic additives.
2. When selecting heat-resistant and chemical-resistant anti-corrosion resin, the appropriate resin should be selected based on the actual medium and temperature of the product, and the company’s “Heat-resistant and chemical-resistant medium usage inquiry form” and confirmed through testing.
3. Post-curing of corrosion-resistant FRP products is particularly important, and the products should be used after they are fully cured.
Transportation should comply with the transportation and handling regulations of hazardous chemicals in Chapter 5 of the national “Regulations on the Safety Management of Dangerous Chemicals”. The product should Store in a cool place below 25℃, avoid fire and isolate heat source. The shelf life is 3 months when stored below 25℃.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:It is suitable for small and medium-sized FRP products in RTM/vacuum infusion and other processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:. It is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Processes:Compression Molding
Application:Suitable for making special products such as BMC manhole covers and traffic guardrail bases.
Structures:NPG Resin
Processes:SMC/BMC
Application:Suitable for BMC electric, automobile and construction field like and other construction field normal SMC electricity boxes, insulating plate, seats, car bumper, decoration plate and SMC basin.
Structures:DCPC
Processes:Filament Winding、Hand lay-up Resin
Application:Suitable for high-grade insulation impregnating varnish.
