Unsaturated Polyester Resin ZC-2699R Orthophthalic Resin Casting Resin

Structures:Orthophthalic
Processes:Casting Resin
Application:t has been dissolved in cross-linking monomers such as styrene and has low viscosity and high reactivity.

+86 18136701732
Info@tritiumupr.com

Product Details

Chemical/Physical Nature

ZC-2699R resin is an o-phthalic unsaturated polyester resin with phthalic anhydride, maleic anhydride and standard diol as main raw materials. It has been dissolved in cross-linking monomers such as styrene and has low viscosity and high reactivity

Benefits and Application

ZC-2699R resin has low viscosity, good wettability, and fast curing. The refractive index of its casting is close to that of alkali-free glass fiber. It has fast board running speed, good toughness, good light transmittance, and good divergence effect on direct sunlight. It is suitable for ordinary light-transmitting boards.

Liquid Resin Typical Properties

Property Value Unit TM
Appearance Light yellow transparent viscous liquid
Acid Value 16-24 mgKOH/g GB/T 2895-2008
Viscosity,25℃ 0.16-0.18 Pa.s GB/T 7193-2008
Solid Content 57-64 % GB/T 7193-2008
Thermal Stability,80℃ ≥24 h GB/T 7193-2008
Gel time 7-14 min GB/T 7193-2008

Unfilled Castings Typical Properties

Property Value Unit TM
Appearance Casting body has no defects
Barcol Hardness 35 GB/T 3854-2005
HDT 70 GB/T 1634-2004
Break Elongation 5 Mpa GB/T 2567-2008
Tensile Strength 60 Mpa GB/T 2567-2008
Tensile Modulus 2800 Mpa GB/T 2567-2008
Flexural Strength 100 Mpa GB/T 2567-2008
Flexural Modulus 3000 Mpa GB/T 2567-2008

FRP Typical Properties

Property Value Unit TM
Barcol Hardness 330 GB/T 3854-2005
Tensile Strength 18000 Mpa GB/T 1447-2005
Tensile Modulus 67 Mpa GB/T 1447-2005
Flexural Strength 16000 Mpa GB/T 1449-2005
Flexural Modulus 380 Mpa GB/T 1449-2005

Application Guidelines

1. ZC-2699R resin does not contain wax, accelerator or thixotropic agent.
2. ZC-2699R resin has moderate reactivity, and its board speed is generally 4-6m/min. To ensure product performance, the board speed should be set in combination with the actual state of equipment conditions and process conditions.

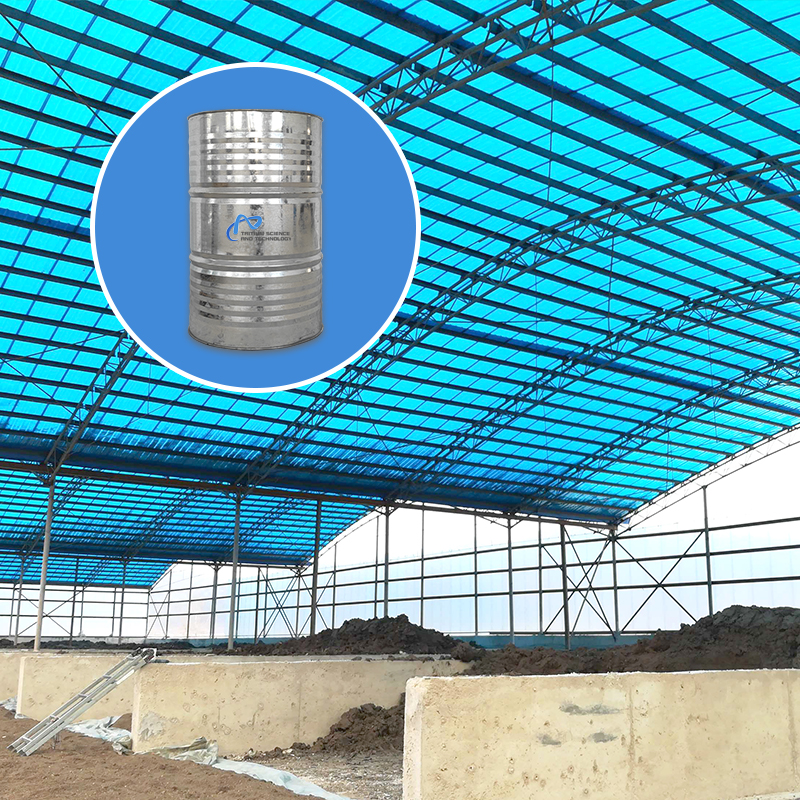

3. ZC-2699R resin is suitable for ordinary translucent tiles.
4. When selecting glass fiber, the refractive index of glass fiber and resin should be matched to ensure the light transmittance of the board.

Package

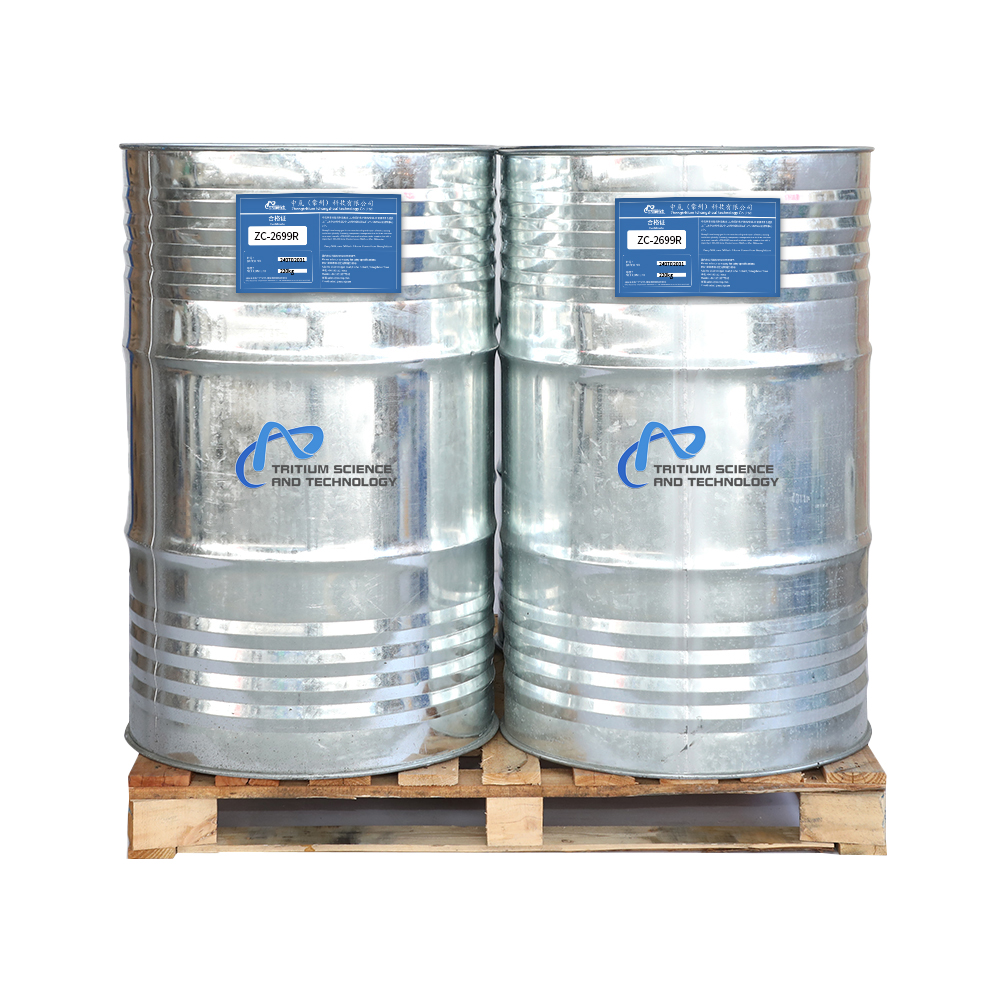

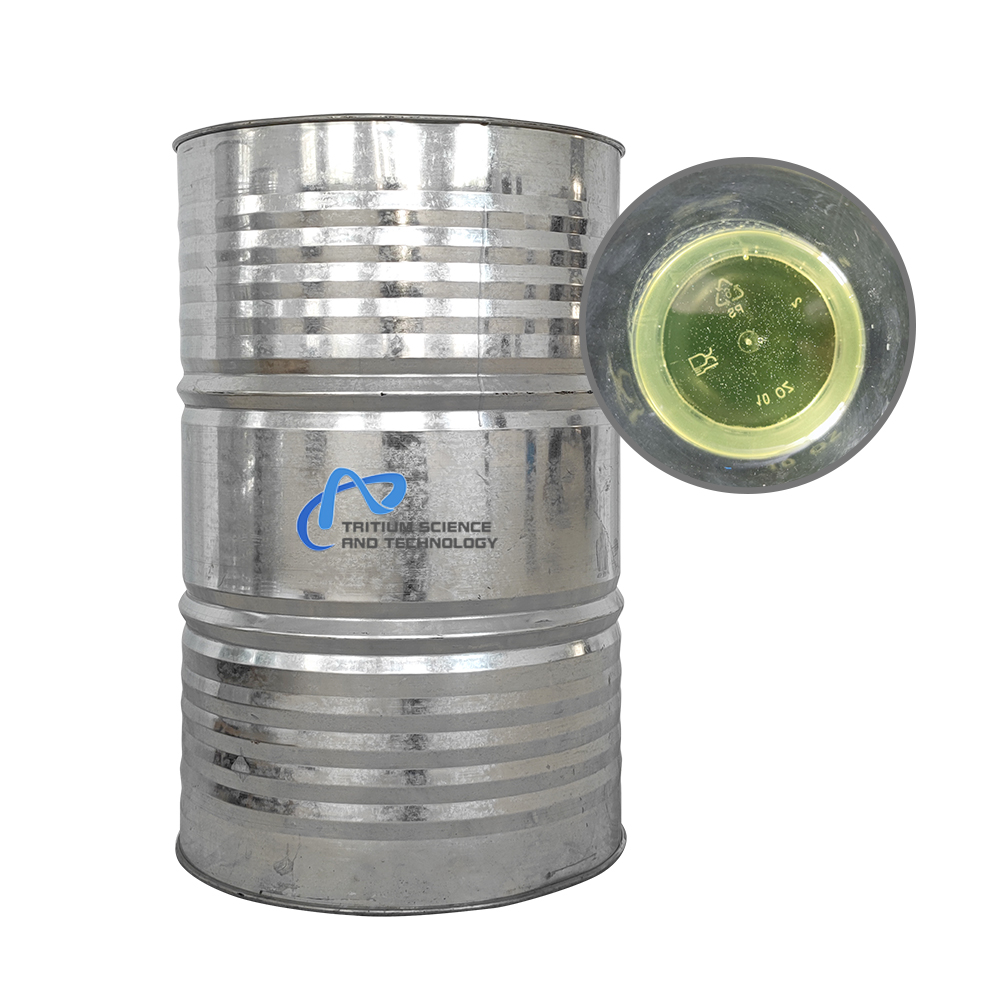

Net weight is 220 kg, metal barrel.Please contact us for special packaging requirements.
