Structures:Orthophthalic
Processes:Casting Resin
Application: It is suitable for ordinary anchoring agents.
ZC-2286 resin is an unsaturated polyester resin with phthalic anhydride, fumaric acid and standard diol as main raw materials. It has been dissolved in cross-linking monomers such as styrene and has medium viscosity and high reactivity.
ZC-2286 resin has high strength, good toughness, fast curing, good surface drying, and good water resistance. It is suitable for ordinary anchoring agents.
| Property | Value | Unit | TM |
| Appearance | Yellow transparent viscous liquid | – | – |
| Acid Value | 16-23 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.35-0.7 | Pa.s | GB/T 7193-2008 |
| Solid Content | 64-72 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gel time,25℃ | 8-9 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body has no defects | – | – |
| Barcol Hardness | 38 | – | GB/T 3854-2005 |
| HDT | 70 | ℃ | GB/T 1634-2004 |
| Break Elongation | 3 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 60 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 2800 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 2900 | Mpa | GB/T 2567-2008 |
1. ZC-2286 resin does not contain wax, accelerator or thixotropic agent.
2. ZC-2286 resin does not contain high-efficiency stabilizer. When making the curing agent, in order to ensure its storage stability, sufficient high-efficiency stabilizer should be added.

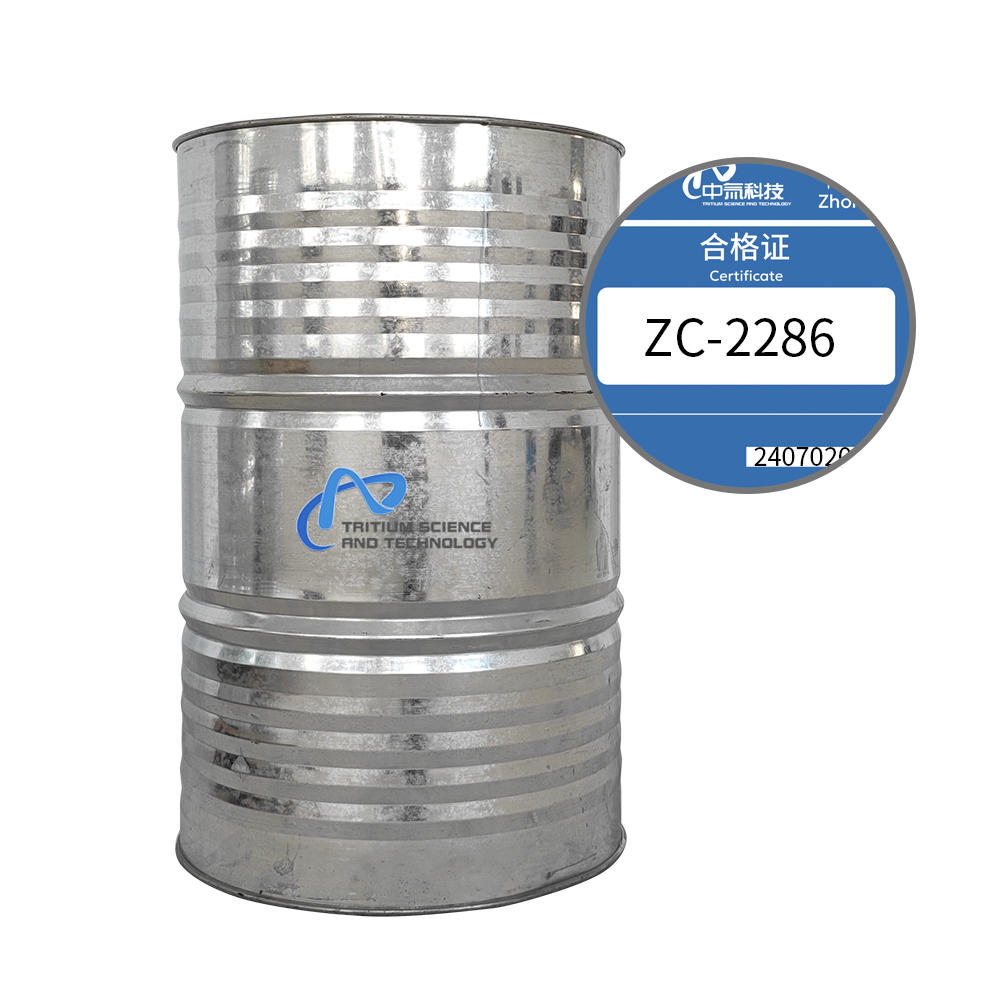

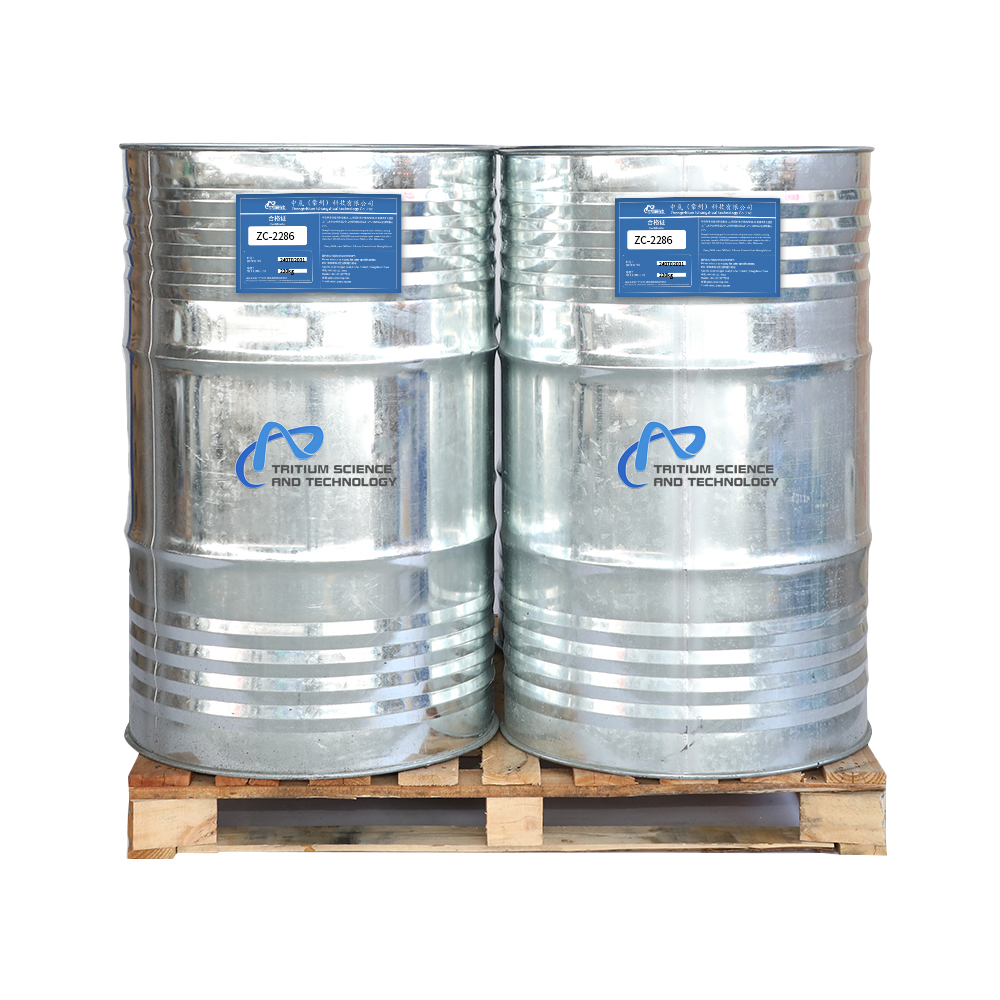

Net weight is 220 kg, metal barrel.Please contact us for special packaging requirements.
