We are the resin manufacturer you need!
Structures:Orthophthalic
Processes:Hand lay-up
Application:Applicable to spray up and hand paste process,craftsmanship production of various inland rivers and lakes, glass reinforced reinforced fiber reinforcement boat or marine glass reinforced reinforcement boat structure layer, as well as glass reinforcement products such as automotive components and cabin hoods.

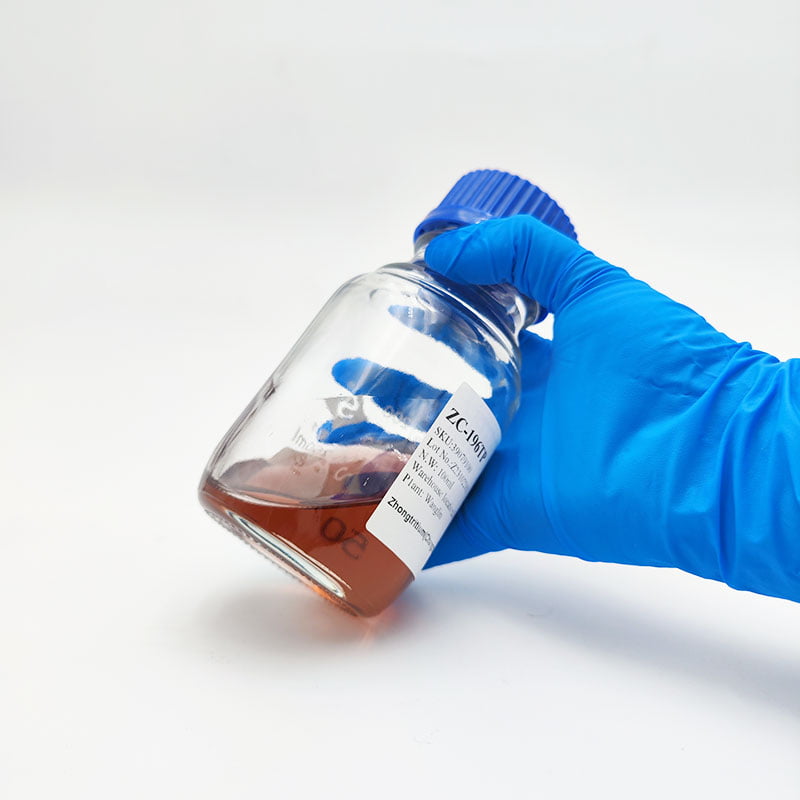

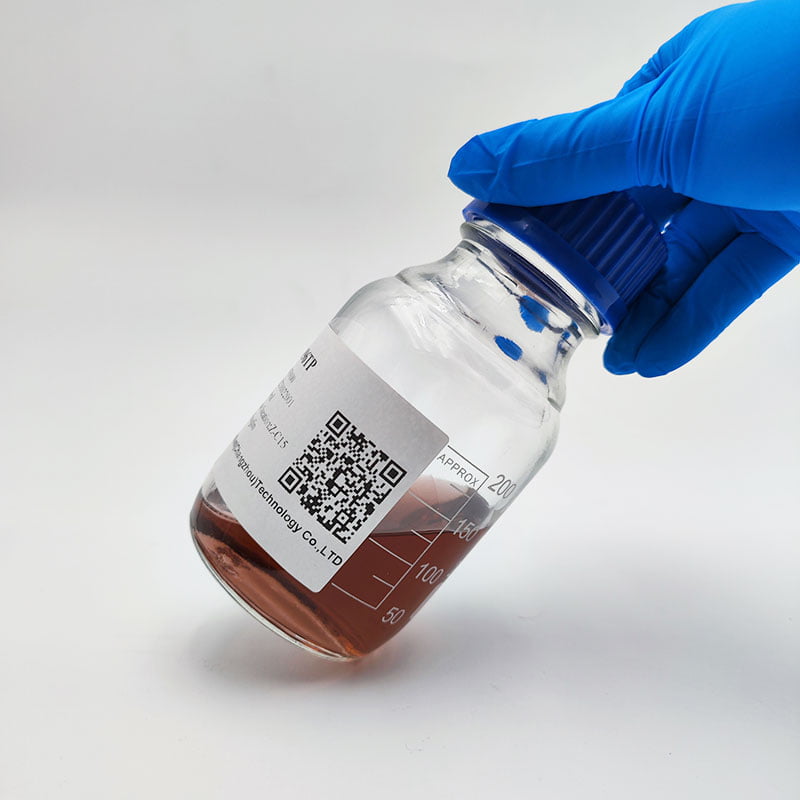

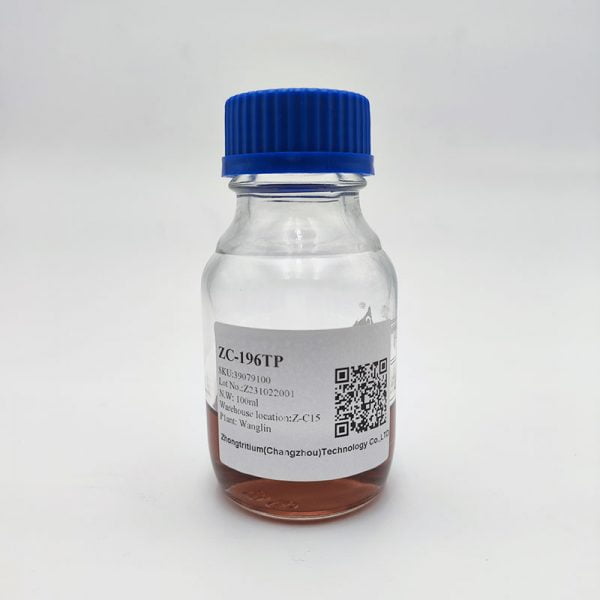

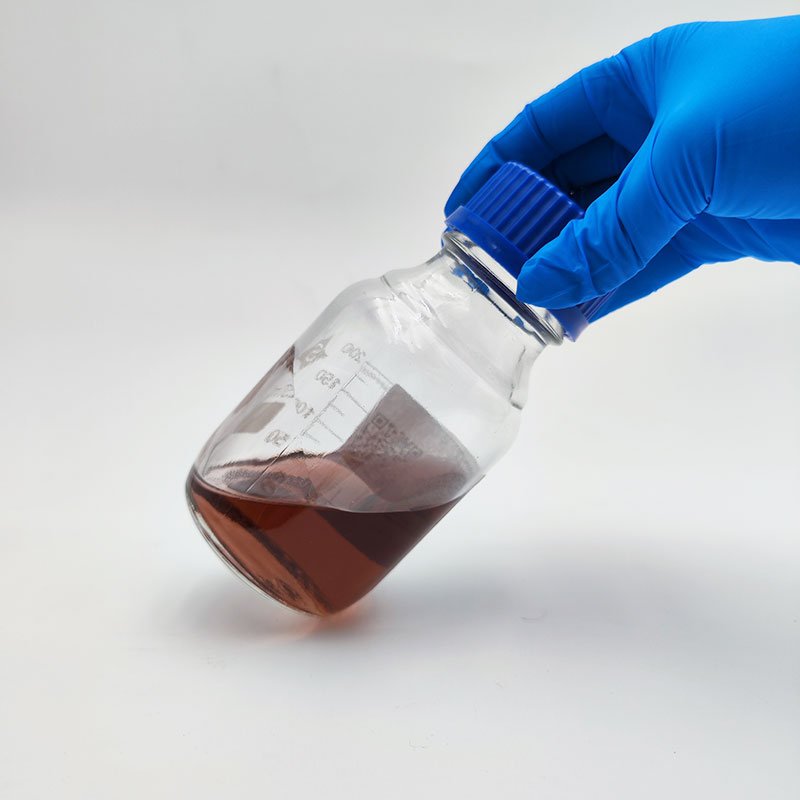

ZC-196TP orthophthalic promoted thixotropic unsaturated polyester resin derived from the chemical reaction of phthalic anhydride, maleic anhydride and standard
ZC-196TP resin features high mechanical strength, high heat resistance, good water resistance, good construction performance,It is easy to be infiltrated with glass fibers and is not easy to flow during operation. Applicable to spray up and hand paste process,craftsmanship production of various inland rivers and lakes, glass reinforced reinforced fiber reinforcement boat or marine glass reinforced reinforcement boat structure layer, as well as glass reinforcement products such as automotive components and cabin hoods. Has passed through China Class (CCS)Certification can be used for ship manufacturing. Certificate number: NJ14W00014.
| Property | Value | Unit | TM |
| Appearance | Red turbid viscous liquid | – | – |
| Acid Value | 19-26 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.20-0.40 | Pa.s | GB/T 7193-2008 |
| Solid Content | 55-66 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time,25℃ | 9-40 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Cast body without defects | – | – |
| Barcol Hardness | 42 | – | GB/T 3854-2005 |
| HDT | 80 | ℃ | GB/T 1634-2004 |
| Break Elongation | 2.5 | % | GB/T 2567-2008 |
| Tensile Strength | 65 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 110 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol Hardness | 42 | – | GB/T 3584-2005 |
| Flexural Strength | 65 | Mpa | GB/T 1449-2005 |
| Flexural Modulus | 3500 | Mpa | GB/T 1449-2005 |
| Tensile Strength | 110 | Mpa | GB/T 1447-2005 |
| Tensile Modulus | 3500 | Mpa | GB/T 1447-2005 |
1. ZC-196TP resin contains fumed silica and promoters, without wax.
2. Suggestions of higher requirements for the surface of the surface to select Zhongtritium with wax -containing 9365APT resin;
3. The functional layer of marine glass reinforcement boats is recommended to choose higher -performance Zhongtritium interval benzene;
4. During the storage of the tactile resin storage, the tactile agent will gradually precipitate, which is normal. Before use Stir well
ZC-196TP resin packaging: net weight 220 kg, metal barrel.Special packaging requirements, please contact us.
Structures:DCPD
Processes:Hand lay-up
Application: Suitable for ordinary fiberglass products, as well as repairing and strengthening stone materials.
Structures:Orthophthalic
Processes:Hand lay-up
Application:Suitable for low -active saturated color slurry (pigment paste).
Structures:DCPD
Processes:Hand lay-up
Application: Suitable for ordinary fiberglass products, as well as repairing and strengthening stone materials.
Structures:Isophthalic
Processes:BMC Molding
Application:Suitable for making BMC manhole cover, traffic guardrail base and other special products.
Structures:Bisphenol A
Processes:Hand lay-up
Application:ZC-3001 UPR resin is suitable for corrosion-resistant fiberglass pipes, containers, and storage tanks with higher corrosion resistance requirements.
Structures:Orthophthalic
Processes:Hand lay-up
Application:ZC-197 UPR resin is suitable for fiberglass products with higher corrosion resistance requirements.
