Polylite™ ZC-5639P-1 Unsaturated Polyester Resin
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
We are the resin manufacturer you need!
Structures:Orthophthalic
Processes:Hand lay-up

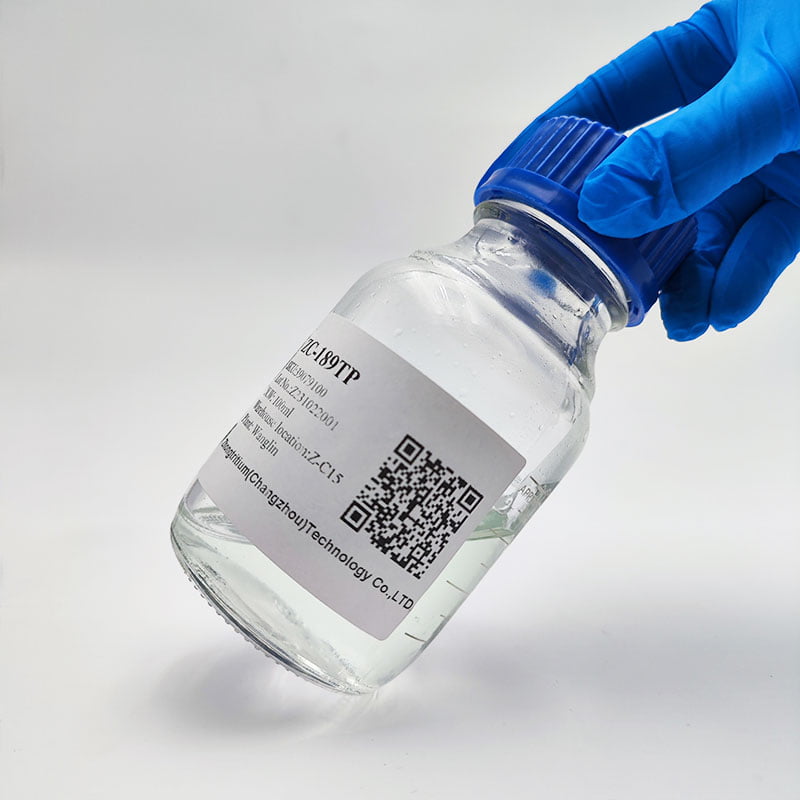

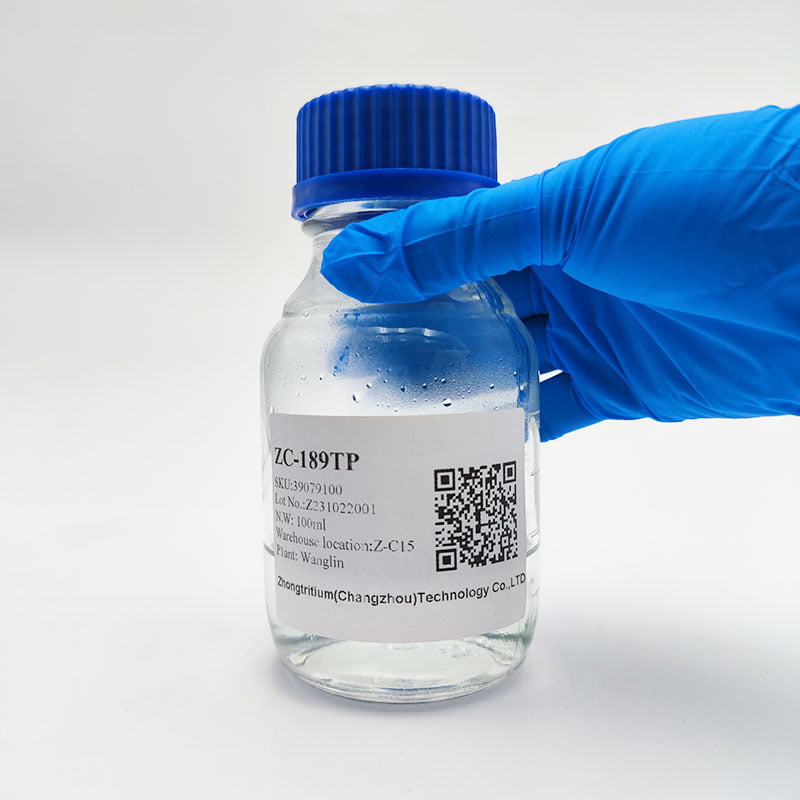

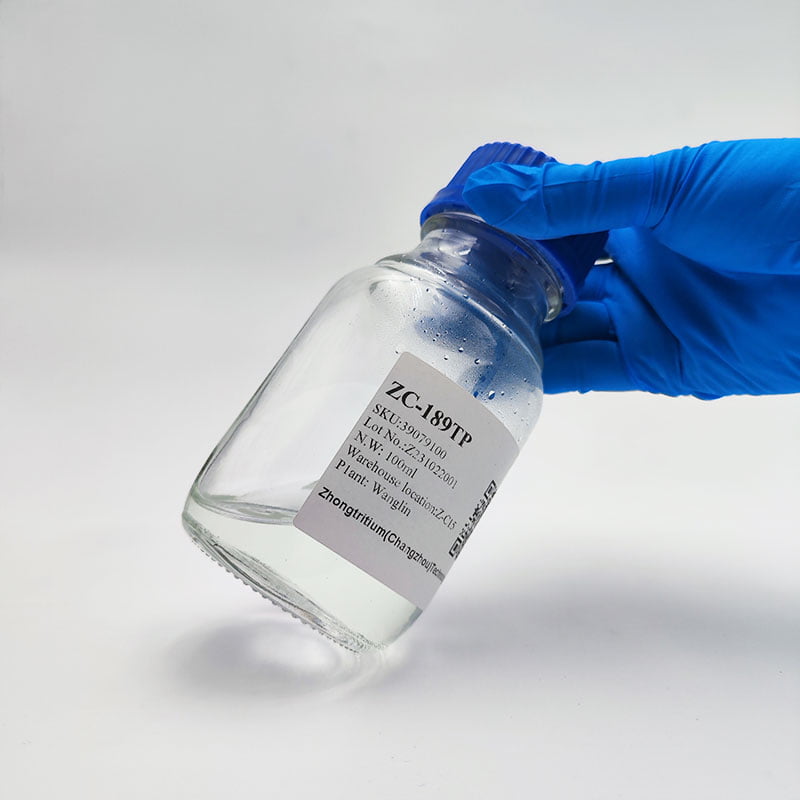

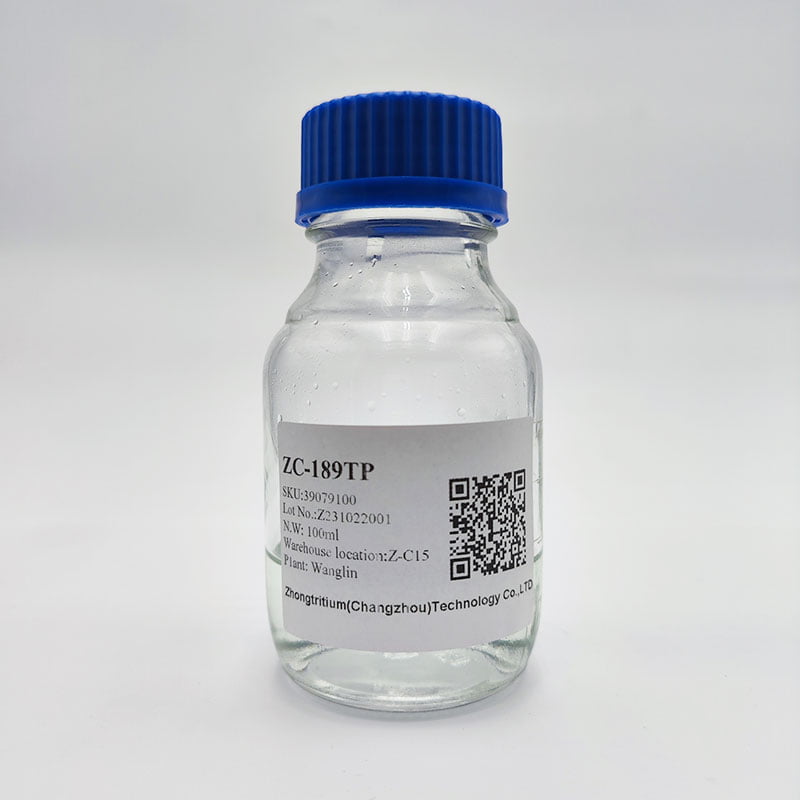

Application:ZC-189TP resin meets the certification requirements of China Classification Society (CCS).It is suitable for hand lay-up process to produce ordinary FRP products such as small FRP boats in inland rivers and automobile parts.
ZC-189TP resin is a pre-thixotropic unsaturated polyester resin with phthalic anhydride, maleic anhydride and standard glycol as the main raw materials. It has low viscosity and medium reactivity.
ZC-189TP resin meets the certification requirements of China Classification Society (CCS). It has good strength and rigidity, fast post-curing, is easy to wet the glass fiber, and does not flow easily during operation. It is suitable for hand lay-up process to produce ordinary FRP products such as small FRP boats in inland rivers and automobile parts.
| Property | Value | Unit | TM |
| Appearance | pink liquid | – | – |
| Acid Value | 17-24 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.3-0.4 | Pa.s | GB/T 7193-2008 |
| Solid Content | 58-64 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gel time | 25-43 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Qualified | – | – |
| Barcol hardness | 40 | – | GB/T 3854-2005 |
| HDT | 70 | ℃ | GB/T 1634-2004 |
| Break Elongation | 2.2 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 55 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 105 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3300 | Mpa | GB/T 2567-2008 |
1. ZC-189TP resin contains wax, thixotropic additives and accelerators.
2. ZC-189TP resin is sensitive to light and tends to gel when exposed to light, so please use it before use.Opening the package or exposing it to strong light should be avoided.
3. If you have higher performance requirements, it is recommended to choose ZC-196TP resin.
4. During the storage process of thixotropic resin, the thixotropic agent will gradually precipitate, which is a normal phenomenon. It should be stirred thoroughly before use.
Net weight is 220 kg, metal barrel.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:It is suitable for small and medium-sized FRP products in RTM/vacuum infusion and other processes.
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:. It is suitable for medium and large FRP products in RTM/vacuum infusion processes.
Processes:Compression Molding
Application:Suitable for making special products such as BMC manhole covers and traffic guardrail bases.
Structures:NPG Resin
Processes:SMC/BMC
Application:Suitable for BMC electric, automobile and construction field like and other construction field normal SMC electricity boxes, insulating plate, seats, car bumper, decoration plate and SMC basin.
Structures:DCPC
Processes:Filament Winding、Hand lay-up Resin
Application:Suitable for high-grade insulation impregnating varnish.
Resin belongs to dangerous goods, and with the processing time, it will take approximately 5-15 working days to deliver
No district limit,We can export our chemicals to every corner of the world.
Yes.At present, We have three member factories, two of which are in the 300000 ton level, one under construction in the 200000 ton level, and one CNAS certified research and development center.
Samples generally deliver by international express, a large number of goods can be transported by land or water.
Specializing in unsaturated polyester resin 100% tested and working before shipment .best price will grant you as per your quantity .
We have been certified by Lloyd's Register and China Classification Society
We have plans to establish overseas factories in places like Vietnam
Resin formulation fine-tuning andformulation improvement can further improve theenvironmental profile of composites
We intelligently identify potential occupational hazards, implement control measures to reduce risks, provide necessary training and equipment, and monitor the occupational health status of employees.
The minimum order quantity for our products varies depending on the product. Please contact us for more information.
Yes, we offer OEM services.
