Structures:DCPD
Processes:Hand lay-up
Industry:ZC-189DC unsaturated polyester resin derived from the chemical reaction of dicyclopentadiene, maleic anhydride, and standard diol.

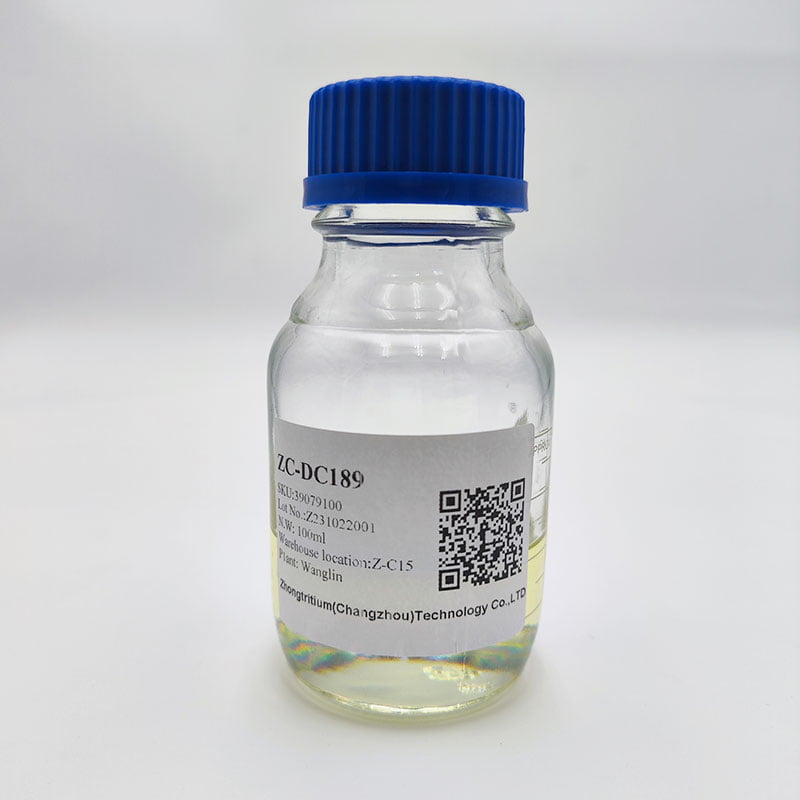

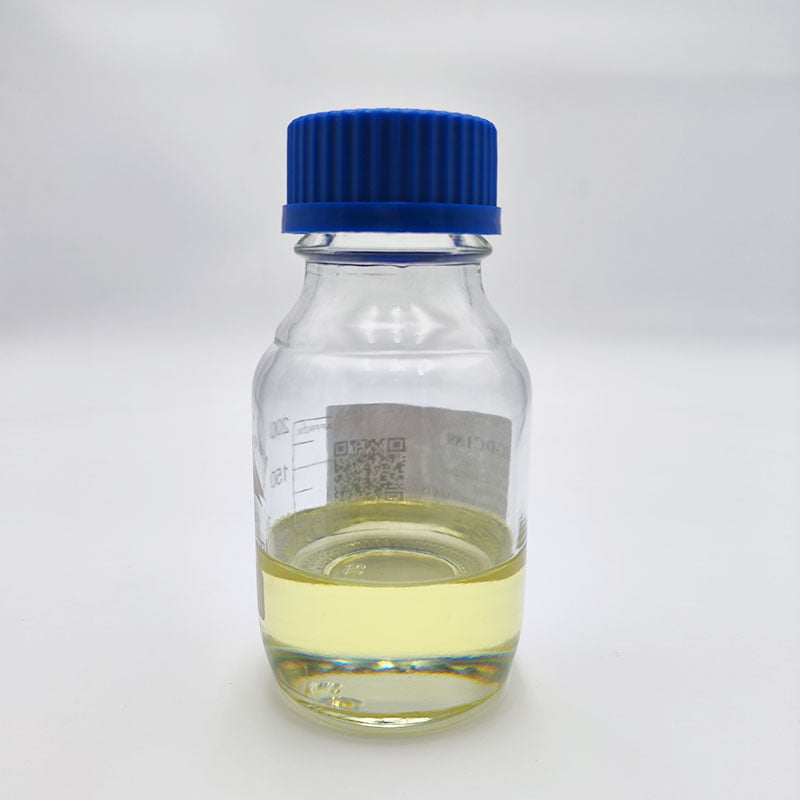

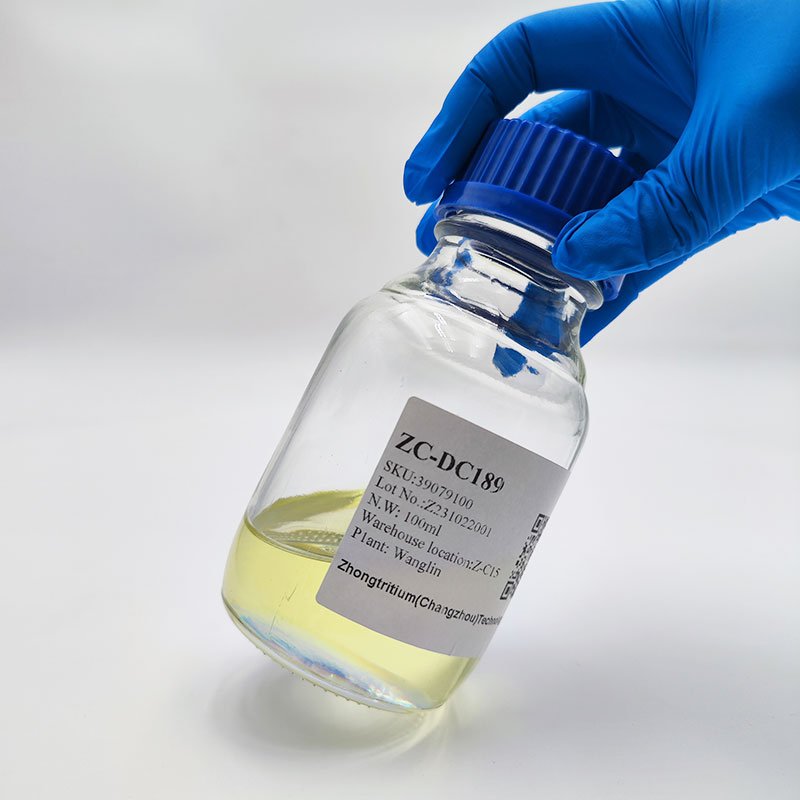

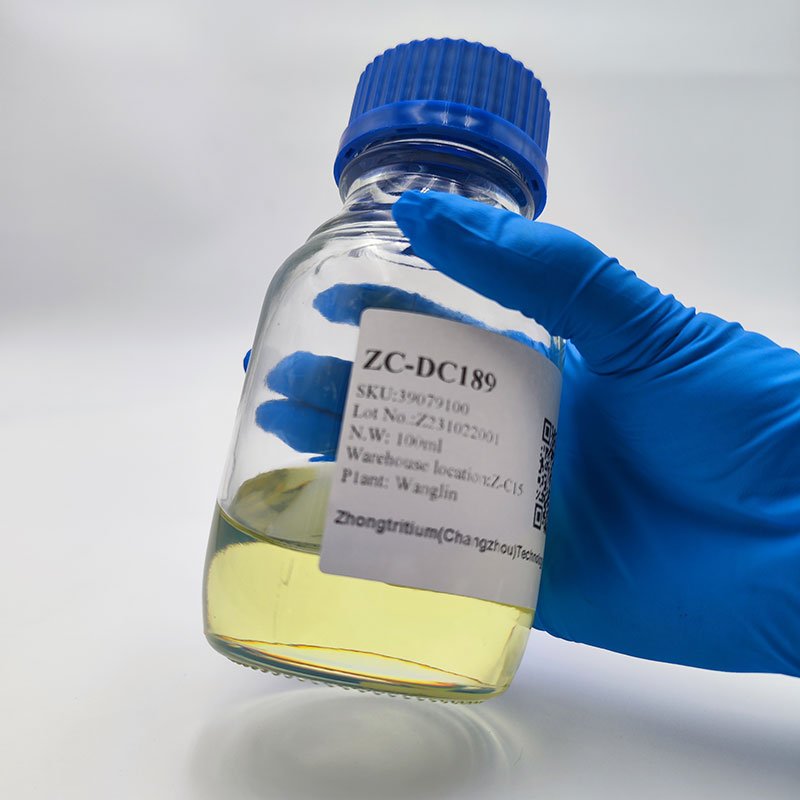

ZC-DC189 unsaturated polyester resin derived from the chemical reaction of dicyclopentadiene, maleic anhydride, and standard diol.
ZC-DC189 un-promoted unsaturated polyester resin features ,Un-thixotropic ,With wax,Medium viscosity,Medium reactivity,Good waterproof.Its inished FRP product have excellent mechanical property and meet China Classification Society CCS certificate requirement.Suitable for suitable for hand layup process normal waterproof FRP products.
| Property | Value | Unit | TM |
| Appearance | Yellowish transparent or slightly muddy viscous liquid | – | – |
| Acid Value | 17-23 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.30-0.60 | Pa.s | GB/T 7193-2008 |
| Solid Content | 68-75 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gel time | 9-18 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body no fault | – | – |
| Babbitt Hardness | 40 | – | GB/T 3854-2005 |
| HDT | 85 | ℃ | GB/T 1634-2004 |
| Breake elongation | 2 | % | GB/T 2567-2008 |
| Tensile Strength | 50 | Mpa | GB/T 2567-2008 |
| Tensile modulus | 3100 | Mpa | GB/T 2567-2008 |
| Flexural strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural modulus | 3200 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol Hardness | 66 | – | GB/T 3584-2005 |
| Flexural strength | 330 | Mpa | GB/T 1449-2005 |
| Flexural modulus | 17000 | Mpa | GB/T 1449-2005 |
| Tensile strength | 330 | Mpa | GB/T 1447-2005 |
| Tensile modulus of elasticity | 17000 | Mpa | GB/T 1447-2005 |
1. ZC-DC189 resin contains wax, excluding promoter and thixotropic agent.
2. ZC-DC189 resin is sensitive to light, and it is easy to gel after seeing light, so it should be avoided before use,free to open the packaging or expose it to a strong light.
3. Recommendation of the curing system: 0.4-2.0%of pure cobalt promotion agent (not recommended to contain There are colorless promoters with copper salt and potassium), and MEKP curing agent is 1.0-2.5%.
ZC-DC189 resin packaging: net weight 220 kg, metal barrel. Special packaging requirements, please contact us.
Structures:Isophthalic
Processes:Hand lay-up
Application:It has good rigidity and fast curing, and is suitable for fiberglass products with higher heat resistance requirements.
Structures:Orthophthalic
Processes:Hand lay-up
Application:ZC-981APT resin meets the certification requirements of China Classification Society (CCS).It is suitable for hand lay-up process to produce ordinary FRP products such as small FRP boats in inland rivers and automobile parts.
Synolite™ 8388-P-1 S features low shrinkage and low styrene emission properties. FRP made from this resin with low fiber print and low smells.
Atlac® 580 ACT is a high grade Bisphenol A Urethane Vinylester, dissolved in styrene. The resin is pre-accelerated and thixotropic. Atlac® 580 ACT features medium viscosity and medium reactivity.
Standard epoxy vinyl ester resin for hand lay-up and spray process
Atlac® 430 ACT is a pre-accelerated thixotropic, high grade bisphenol A vinyl ester resin.
Structures:Orthophthalic
Processes:Spraying-up Resin
Application:It is suitable for spraying to make surface decorative layers and protective layers of various ordinary fiberglass products.
Resin belongs to dangerous goods, and with the processing time, it will take approximately 5-15 working days to deliver
No district limit,We can export our chemicals to every corner of the world.
Yes.At present, We have three member factories, two of which are in the 300000 ton level, one under construction in the 200000 ton level, and one CNAS certified research and development center.
Samples generally deliver by international express, a large number of goods can be transported by land or water.
Specializing in unsaturated polyester resin 100% tested and working before shipment .best price will grant you as per your quantity .
We have been certified by Lloyd's Register and China Classification Society
We have plans to establish overseas factories in places like Vietnam
Resin formulation fine-tuning andformulation improvement can further improve theenvironmental profile of composites
We intelligently identify potential occupational hazards, implement control measures to reduce risks, provide necessary training and equipment, and monitor the occupational health status of employees.
The minimum order quantity for our products varies depending on the product. Please contact us for more information.
Yes, we offer OEM services.
